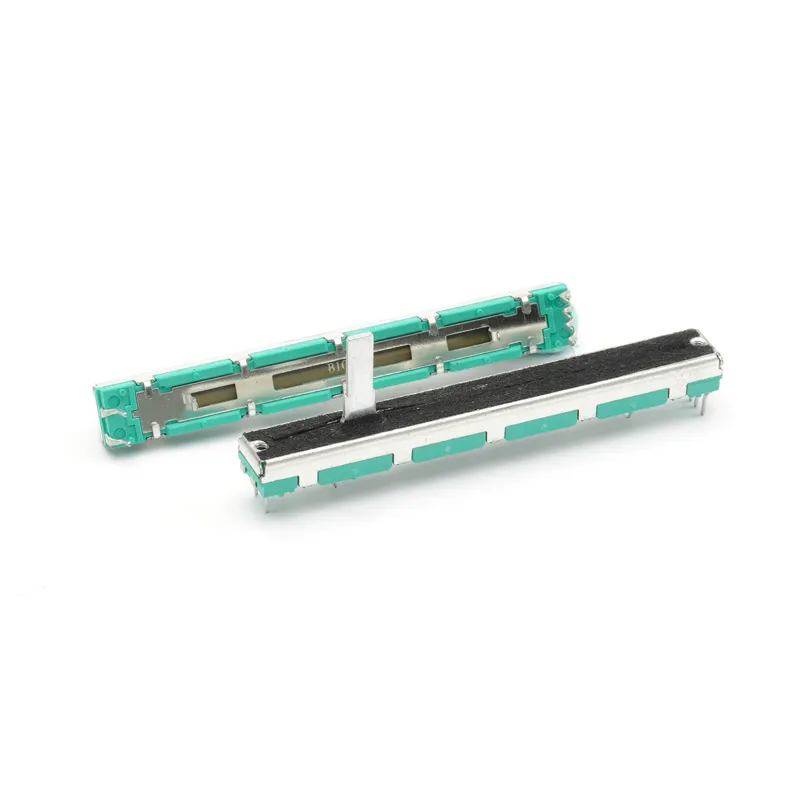

SD608G-HA 60mm Sealed Dual-Gang Slide Potentiometer with Mounting Bracket
The SD608G-HA Sealed Dual Slide Potentiometer is a high-performance linear control component designed for precision adjustment in professional audio equipment, industrial electronics, and OEM applications. Featuring a 60mm travel, dual-gang configuration, and a compact 75×9×7mm plastic housing, it delivers smooth operation and stable electrical performance.
This model incorporates an integrated mounting bracket for enhanced PCB stability, while the sealed construction and dust-proof felt effectively prevent contaminants from entering the internal mechanism, ensuring reliable performance and extended service life.
Designed for manufacturers seeking dependable analog control solutions, the SD608G-HA combines precision, durability, and flexible customization to meet the requirements of modern electronic products.
Key Features
1. Dual-Gang Synchronized Control
The SD608G-HA features a dual-gang design that enables simultaneous adjustment of two independent circuits. It is ideal for stereo audio equipment, dual-channel signal processing, and synchronized electronic control systems requiring accurate resistance tracking.
2. 60mm Long Linear Travel
With a 60mm sliding stroke, the potentiometer provides smooth, accurate, and responsive adjustment. The extended travel allows finer control resolution, making it suitable for professional equipment where precise signal adjustment is essential.
3. Sealed Housing with Dust-Proof Felt
The sealed plastic construction is equipped with a durable dust-proof felt strip that effectively protects the resistive element from dust and debris. This design minimizes operating noise and significantly improves long-term reliability.
4. Integrated Mounting Bracket
The built-in mounting bracket enhances mechanical stability during PCB installation. It improves vibration resistance and ensures secure assembly in professional electronic devices and industrial control systems.
5. Compact 75×9×7mm Housing
Despite offering a long 60mm operating travel, the SD608G-HA maintains a slim 75×9×7mm profile, making it easy to integrate into compact electronic products without sacrificing performance.
6. Stable Electrical Performance
Manufactured with high-quality materials and precision production processes, the potentiometer provides low residual resistance, excellent insulation resistance, low sliding noise, and consistent electrical characteristics throughout its service life.
Technical Specifications
| Item | Specification |
|---|---|
| Product Model | SD608G-HA |
| Product Type | Dual Slide Potentiometer |
| Series | SD Series |
| Travel Length | 60mm |
| Housing Size | 75 × 9 × 7 mm |
| Case Type | Sealed Plastic Case |
| Mounting Style | With Mounting Bracket |
| Protection Design | Dust-Proof Felt |
| Gang Type | Dual Gang |
| Operating Force | 10–110 gf·cm |
| Shaft Stop Strength | ≤5 kgf·cm |
| Lever Wobble | 2 × L /10mm Max |
| Total Resistance Range | 1kΩ–1MΩ |
| Resistance Taper | Linear (B), Audio (A), Custom Available |
| Power Rating | Linear: 0.2W |
| Maximum Operating Voltage | Linear: 500V DC |
| Residual Resistance | R1-R2 <10Ω; R2-R3 <20Ω |
| Sliding Noise | ≤100mV |
| Tracking Error | ≤±3dB (-40~0dB) |
| Insulation Resistance | ≥100MΩ at 250V DC |
| Withstanding Voltage | 300V AC for 1 Minute |
| Mechanical Life | ≥10,000 Cycles |
| Minimum Order Quantity | 2,400 PCS |
| Reference Price | USD 0.48/PCS |
| Pricing Policy | More competitive pricing available for bulk orders |
Customization Options
As an experienced slide potentiometer manufacturer, we provide comprehensive OEM and ODM customization services, including:
- Resistance values from 1kΩ to 1MΩ
- Linear, logarithmic, and custom taper options
- Customized actuator heights and lever designs
- Single or dual-gang configurations
- PCB terminal layout customization
- Operating force adjustment
- Mounting bracket modifications
- Dust-proof structure optimization
- Custom logo printing
- Packaging tailored to customer requirements
- RoHS and REACH compliant production
Applications
The SD608G-HA sealed dual slide potentiometer is widely used in:
- Professional audio mixers
- Digital mixing consoles
- Audio amplifiers
- Graphic equalizers
- DJ controllers
- Broadcasting equipment
- Industrial automation systems
- Communication devices
- Medical electronic equipment
- Testing and measuring instruments
- Smart home control panels
- Consumer electronic products
Featuring a 60mm travel, dual-gang design, integrated mounting bracket, sealed housing, and dust-proof felt, the SD608G-HA offers dependable performance for demanding commercial and industrial applications.
FAQ
Q1. Is the SD608G-HA a dual-gang slide potentiometer?
Yes. It features a dual-gang configuration that simultaneously controls two independent circuits for stereo and dual-channel applications.
Q2. What is the travel length?
The SD608G-HA provides a 60mm linear sliding travel, offering smooth and precise adjustment.
Q3. Does this model include a mounting bracket?
Yes. It is equipped with an integrated mounting bracket that improves PCB installation stability and mechanical strength.
Q4. Is the potentiometer protected against dust?
Yes. The sealed housing includes a durable dust-proof felt strip to reduce contamination and improve product longevity.
Q5. Can resistance values and taper curves be customized?
Yes. We support resistance values from 1kΩ to 1MΩ and offer linear, logarithmic, and custom taper options for OEM and ODM projects.
Q6. What are the MOQ and pricing?
The minimum order quantity is 2,400 pieces. The reference price is USD 0.48 per piece, with more competitive pricing available for larger-volume orders.
Why Choose SD608G-HA?
- 60mm precision sliding travel
- Dual-gang synchronized control
- Integrated mounting bracket
- Sealed plastic housing
- Dust-proof felt protection
- Compact 75×9×7mm design
- Smooth and stable operation
- Mechanical life exceeding 10,000 cycles
- OEM & ODM customization available
- MOQ: 2,400 PCS
- Factory-direct pricing with bulk order discounts
