9mm Sealed Rotary Potentiometer for Precision Electronic Control
The 9mm rotary potentiometer RA096 series is a compact and reliable electronic control component designed for precise resistance adjustment in small and medium-sized electronic devices. This series includes models such as RA096G-V1, RA096G-V3, and RA096N-V1-CC, offering different terminal layouts and body color options to meet various PCB design and product assembly requirements.
As a professional sealed rotary potentiometer, the RA096 series features an insert-molding insulated shaft structure, stable rotational performance, and through-hole PCB mounting terminals. It is widely used for audio volume control, signal adjustment, speed control, brightness regulation, and other electronic control applications.
With its compact 9mm size, durable shaft design, and reliable electrical performance, this RA096 rotary potentiometer is suitable for manufacturers of audio equipment, consumer electronics, home appliances, industrial control devices, smart home products, medical instruments, and automotive electronic systems.
Product Models

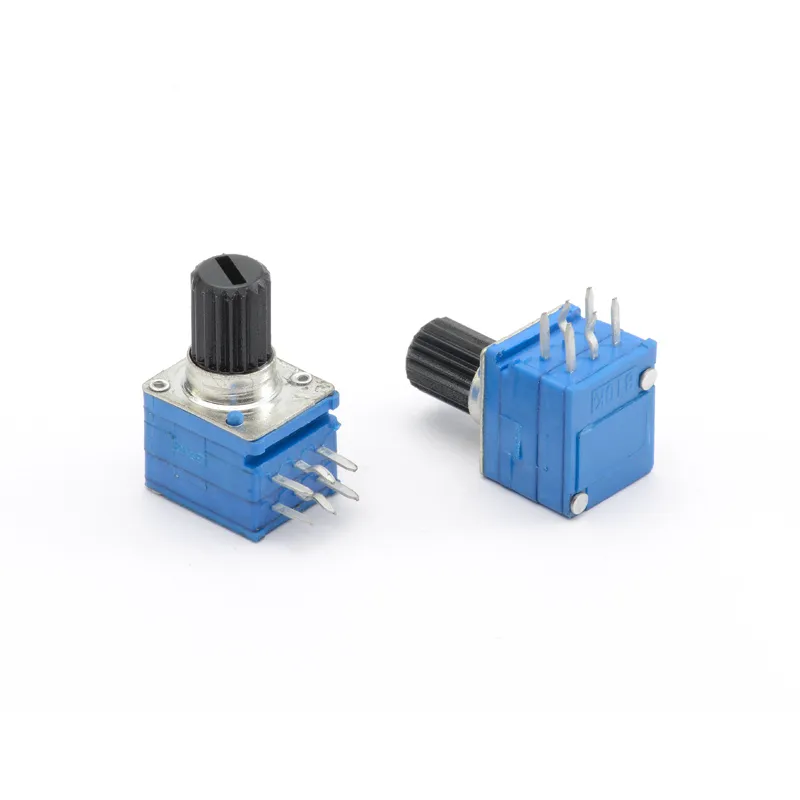

RA096G-V1 Rotary Potentiometer
The RA096G-V1 rotary potentiometer is a compact 9mm sealed potentiometer with a blue insulated body, black knurled shaft, and side PCB terminals. It is suitable for control panels and electronic devices that require stable manual adjustment in a limited installation space.

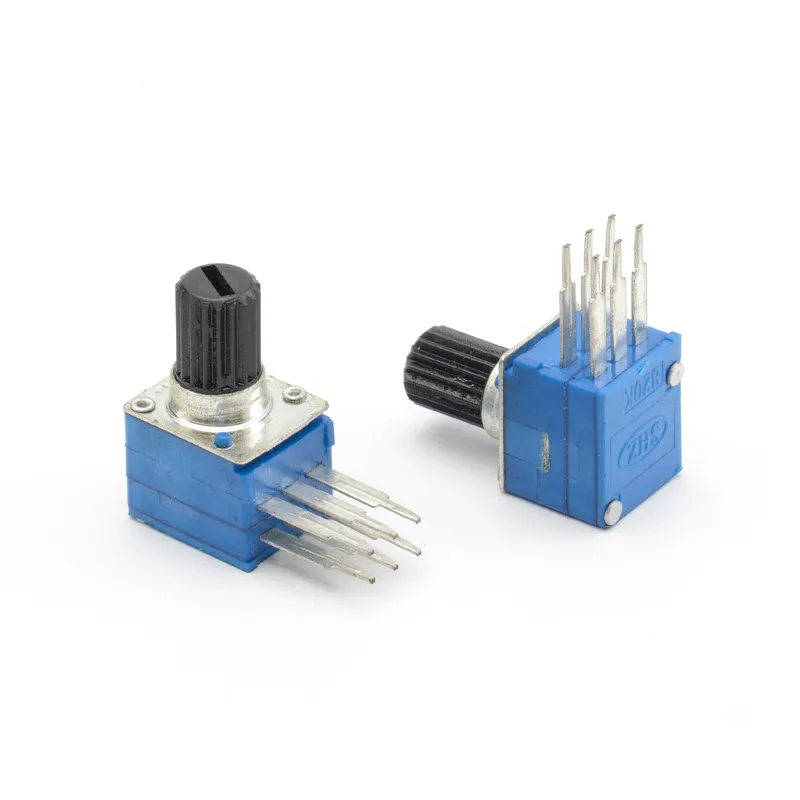

RA096G-V3 Rotary Potentiometer
The RA096G-V3 rotary potentiometer features a multi-terminal structure, making it suitable for circuit designs that require more connection points or multi-function control. Its 9mm body and PCB mount design help improve assembly efficiency for electronic manufacturers.

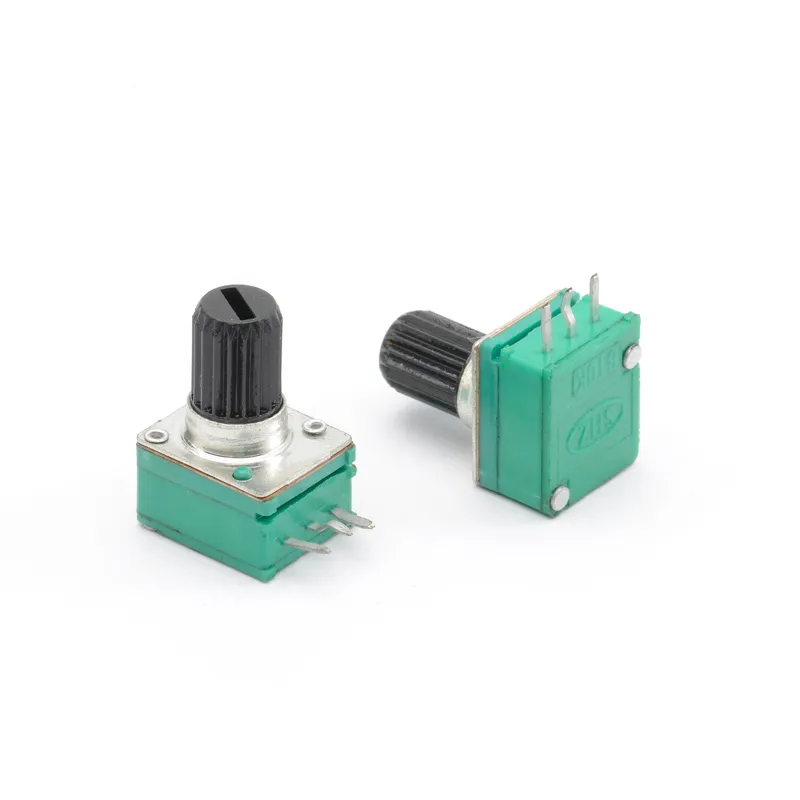

RA096N-V1-CC Potentiometer
The RA096N-V1-CC potentiometer provides a similar compact structure with a green insulated body option. It can be used in customized electronic control projects where body color, terminal arrangement, or circuit compatibility may need to be adjusted according to customer requirements.
Key Features
Compact 9mm Body Design
This 9mm sealed rotary potentiometer is designed for space-saving installation. The compact size makes it ideal for small electronic devices, portable equipment, control modules, and PCB-mounted applications.
Insulated Shaft Structure
The insulated shaft rotary potentiometer adopts an insert-molding design, helping improve operational stability and electrical insulation performance. The shaft supports smooth rotation and accurate manual adjustment.
PCB Mount Terminal Layout
This PCB mount rotary potentiometer is designed with through-hole terminals for stable soldering and secure board installation. Different pin layouts are available for different circuit board designs.
Smooth Rotation and Reliable Control
The RA096 series offers a total rotational angle of 300° ± 10° and rotational torque of 20–100 gf.cm, providing smooth operation for volume adjustment, signal control, and other precision adjustment functions.
Customizable Options
The RA096 series can support different shaft types, shaft lengths, resistance values, terminal structures, and body color options. This makes it suitable for OEM and ODM electronic product manufacturers looking for a custom 9mm potentiometer manufacturer.
Technical Specifications
| Item | Specification |
|---|---|
| Product Series | RA096 Series |
| Product Models | RA096G-V1, RA096G-V3, RA096N-V1-CC |
| Product Type | 9mm Insert-Molding Insulated Shaft Rotary Potentiometer |
| Mounting Type | PCB Mount / Through-Hole Mount |
| Shaft Type | Insulated Knurled Shaft |
| Shaft Teeth | 18 Teeth Knurl |
| Total Rotational Angle | 300° ± 10° |
| Rotational Torque | 20–100 gf.cm |
| Shaft Stop Strength | ≤3 kgf.cm |
| Push & Pull Strength | ≥5 kgf.cm |
| Shaft Wobble | Within 0.7 × L / 20 mm p-p |
| Total Resistance Range | 1KΩ < R < 1MΩ ±20%; 1KΩ ≥ R ≥ 1MΩ ±30% |
| Resistance Taper | Customizable / Refer to project requirements |
| Power Rating | ≤0.05W |
| Max. Operating Voltage | 50V AC / 20V DC |
| Residual Resistance | R1~2 less than 10Ω; R2~3 less than 20Ω |
| Rotational Noise | ≤100mV |
| Tracking Error | ≤±3dB at -40～0dB |
| Insulation Resistance | 100MΩ min at 250V DC |
| Withstanding Voltage | 1 minute at 250V AC |
| Rotational Life | ≥10,000 cycles |
| Body Color | Blue / Green option |
| Application | Audio control, electronic control, PCB circuit control |
Applications
The RA096 rotary potentiometer is suitable for many electronic control applications, including:
- Audio volume control
- Tone and signal adjustment
- Brightness control systems
- Speed adjustment devices
- Smart home control panels
- Consumer electronic products
- Medical equipment control modules
- Automotive electronic controls
- Home appliance control boards
- Industrial instrument panels
- OEM and ODM electronic devices
For manufacturers looking for a reliable rotary potentiometer for electronic devices, the RA096 series provides a practical balance of compact size, stable performance, and flexible customization.
Why Choose Our RA096 Series 9mm Rotary Potentiometer?
The RA096 series is designed for B2B customers who need stable quality, consistent supply, and flexible product customization. Compared with general potentiometers, this 9mm sealed rotary potentiometer offers a compact structure, insulated shaft design, PCB mount compatibility, and multiple model options.
Whether your project requires RA096G-V1, RA096G-V3, or RA096N-V1-CC potentiometer, we can provide support for resistance selection, shaft length, shaft style, terminal layout, and sample confirmation. This helps electronic product manufacturers improve product compatibility and reduce development time.
As a professional custom 9mm potentiometer manufacturer, we support OEM and ODM orders based on customer drawings, samples, or application requirements.
FAQ
Q1: What is a 9mm rotary potentiometer used for?
A 9mm rotary potentiometer is used to adjust resistance, voltage, volume, brightness, speed, or signal output in electronic devices. It is commonly used in audio equipment, control panels, home appliances, and industrial electronics.
Q2: What is the difference between RA096G-V1 and RA096G-V3?
The main difference is usually the terminal layout and pin structure. RA096G-V1 rotary potentiometer is suitable for standard PCB control applications, while RA096G-V3 rotary potentiometer can be used for circuit designs that require more terminals or different connection layouts.
Q3: Is RA096N-V1-CC the same series as RA096G-V1?
Yes, RA096N-V1-CC potentiometer belongs to the same 9mm sealed rotary potentiometer product category. It may have differences in body color, terminal layout, or customized structure depending on customer requirements.
Q4: Can the resistance value be customized?
Yes. Resistance value, resistance tolerance, shaft length, shaft type, body color, and terminal layout can be customized according to OEM or ODM project requirements.
Q5: Is this potentiometer suitable for PCB mounting?
Yes. This PCB mount rotary potentiometer is designed with through-hole terminals, making it suitable for stable soldering and PCB assembly.
