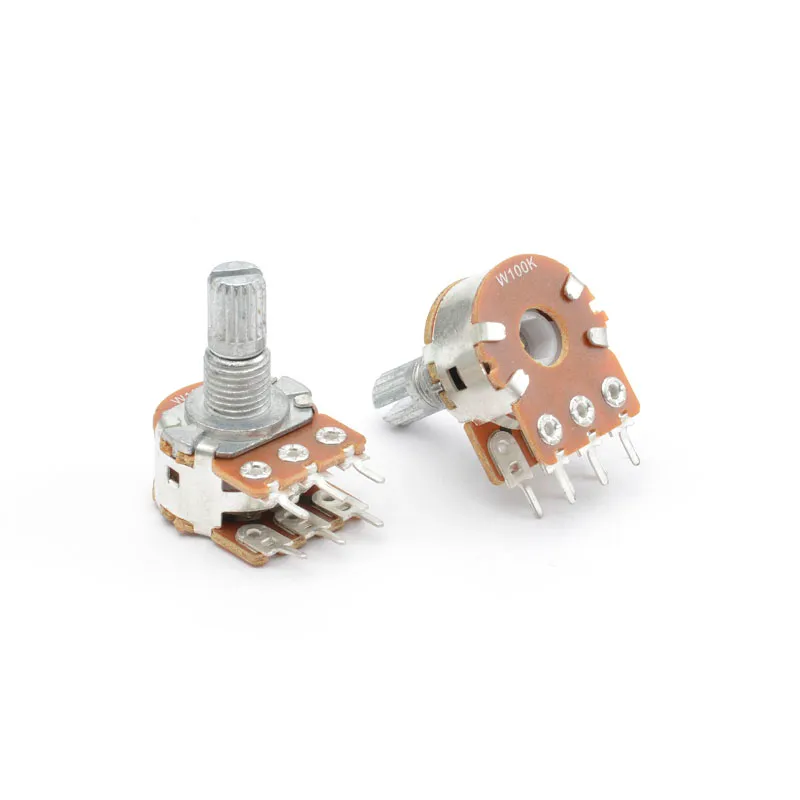

RD161G-V1 16mm Vertical Dual Gang Rotary Potentiometer with Threaded Bushing

Product Introduction

The RD161G-V1 is a premium 16mm dual gang rotary potentiometer engineered with a threaded metal bushing and vertical PCB mounting pins. Featuring a 12.5mm shaft height, this dual-unit potentiometer delivers exceptional rotational stability and precise dual-channel signal attenuation for commercial electronics and audio control panels.

Constructed with high-grade carbon film elements and a robust metal shaft with threaded bushing, it ensures minimal tracking error matching and dependable long-term electrical performance across high-density PCB layouts.

Available for OEM mass production, this versatile component provides electronic manufacturers with exceptional circuit reliability, high rotational endurance, and flexible volume-based supply chain pricing.

Key Features

Dual Gang Stereo Architecture:

Featuring a synchronized dual-unit (gang) construction, the RD161G-V1 controls two independent audio or electrical channels simultaneously. With a tight tracking error within ±3dB, it guarantees accurate signal balance and seamless stereo channel matching across complex circuit boards.
Heavy-Duty Threaded Bushing & Shaft:

Equipped with a sturdy 16mm metal shaft and a threaded bushing (12.5mm height), this rotary potentiometer offers superior mechanical rigidity. The threaded collar allows secure panel mounting, preventing shaft deflection and protecting internal PCB solder joints from structural fatigue during heavy operation.
Smooth 300-Degree Rotational Travel:

Designed with a $300^\circ \pm 10^\circ$ total rotational angle and smooth rotational torque (20 to 200gf.cm), this component delivers fine-tuned tactile control. The balanced resistance curve provides predictable, precise voltage distribution essential for accurate audio volume adjusting and equipment calibration.
Compact Vertical PCB Mount Configuration:

The vertical pin terminal design saves valuable board real estate while maintaining strong mechanical grounding. Engineered for efficient wave soldering, the compact 12.5mm vertical profile allows high-density integration into tight industrial enclosures and modern desktop audio consoles without compromising access.
High Durability & Low Noise Signal Track:

Built for a mechanical lifecycle exceeding 10,000 cycles, the high-grade carbon track reduces operational rotational noise to under 100mV. This low-noise performance preserves signal purity, ensuring crisp audio processing and reliable parameter adjustments throughout extended industrial service.

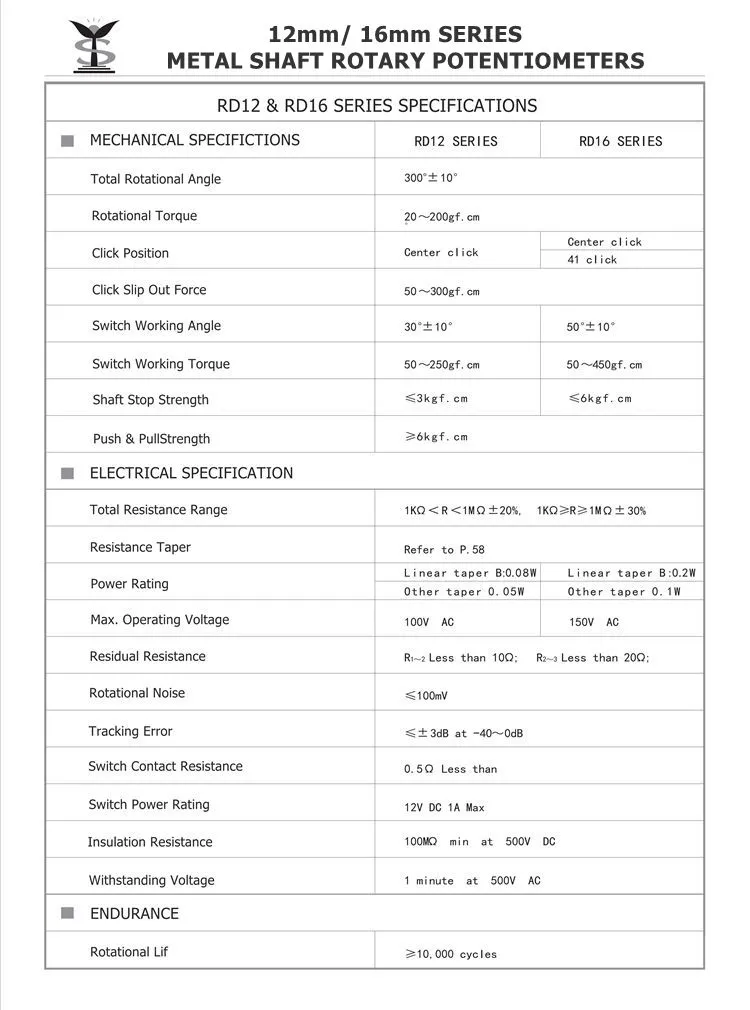

Technical Specifications

Item	Specification
Product Model	RD161G-V1
Product Type	Vertical Dual Gang / Dual Unit Rotary Potentiometer
Series	RD16 Series
Travel Length	N/A ( $300^\circ \pm 10^\circ$ Rotational Angle)
Case Type	Metal Shaft with Threaded Bushing

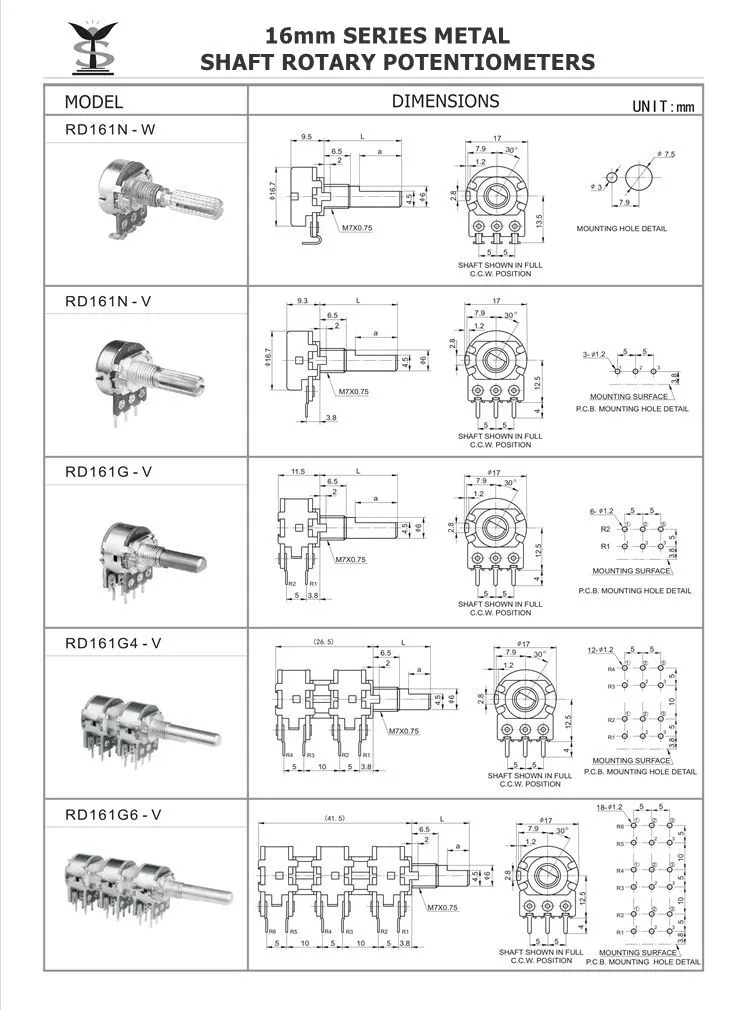

Case Size	16mm Frame Diameter, H=12.5mm Mounting Height
Protection Design	Threaded Metal Bushing Enclosure
Operating Force	Rotational Torque: 20 ~ 200 gf.cm
Shaft Stop Strength	≤ 6 kgf.cm
Lever Wobble	N/A (Push & Pull Strength: ≥ 6 kgf.cm)
Click Force	Optional Center Click / 41 Click (50 ~ 300 gf.cm)
Total Resistance Range	1 kΩ < R < 1 MΩ (±20%), R ≤ 1 kΩ or R ≥ 1 MΩ (±30%)
Resistance Taper	Linear Taper B / Audio Taper A / Custom Curves
Power Rating	Linear Taper B: 0.2 W; Other Taper: 0.1 W
Max. Operating Voltage	150V AC
Residual Resistance	$R_{1-2}$ Less than 10 Ω; $R_{2-3}$ Less than 20 Ω
Sliding / Operating Noise	Rotational Noise ≤ 100 mV
Tracking Error	≤ ±3dB at -40 ~ 0dB
Insulation Resistance	100 MΩ min. at 500V DC
Withstanding Voltage	1 minute at 500V AC

Customization Options

Shaft Styles & Heights: Custom shaft types including knurled/splined, flat D-shaft, or round plain shafts with tailored heights ( $H$ ) beyond 12.5mm to fit specific knob dimensions.
Resistance Tapers: Flexible curve options including Linear (Type B), Audio Logarithmic (Type A), and Reverse Logarithmic (Type C) resistance values ranging from 1kΩ to 1MΩ.
Detent / Click Options: Available center click or multi-click positioning (such as 41 detents) to provide distinct tactile feedback for indexed adjustment systems.

Applications

The RD161G-V1 16mm dual gang rotary potentiometer is ideal for versatile electronic equipment requiring dual-channel control. Primary application scenarios include: commercial audio power amplifiers, sound mixing consoles, active studio monitor speakers, home theater receivers, electronic musical keyboards, guitar amplifiers, industrial machinery speed controllers, medical equipment control interfaces, intercom communication panels, test and measurement instruments, HVAC fan speed regulators, and automotive dashboard control modules. Its threaded metal bushing ensures stable panel mounting across high-use commercial and industrial devices.

FAQ

What is the MOQ and unit pricing for the RD161G-V1 potentiometer?

The minimum order quantity is 3,000 pieces at $0.25 USD each, with tiered volume discounts for large production runs.
What are the key benefits of the threaded metal bushing design?

The threaded bushing enables secure panel mounting, reinforcing structural support and reducing stress on PCB solder connections during rotation.
Can this 16mm dual unit potentiometer be customized with different shaft types?

Yes, we provide full OEM customization for shaft length, knurled or flat D-shapes, resistance tapers, and pin styles.
What is the rotational life expectancy of the RD161G-V1 series?

This model is engineered for long-term reliability with an operational rotational endurance rating of over 10,000 cycles.
Does the dual gang configuration maintain accurate stereo tracking?

Yes, the synchronized dual tracks maintain a tight tracking error matching within ±3dB for precise stereo balance.
What is the maximum operating voltage supported by this rotary potentiometer?

The RD161G-V1 safely operates at a maximum AC voltage rating of up to 150V AC.
