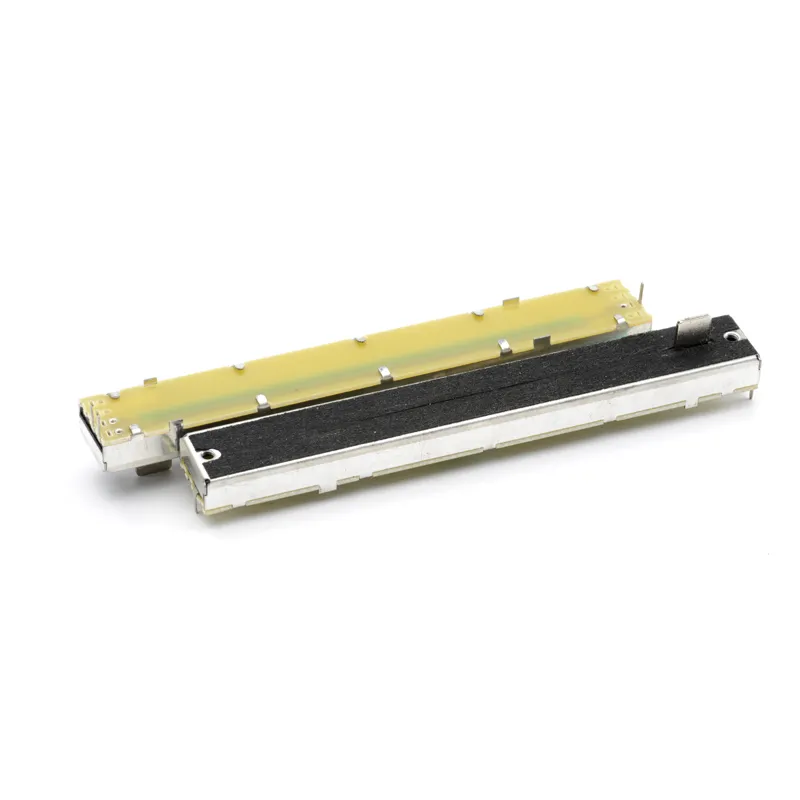

SD1009N-H 100mm Dual Unit Slide Potentiometer with Dual Rail Design

Product Introduction

The SD1009N-H is a high-performance 100mm dual unit slide potentiometer engineered for professional audio mixing consoles and control systems. Featuring a rugged dual rail architecture, this premium fader ensures perfectly synchronized channel tracking and ultra-smooth linear attenuation for demanding commercial electronic and industrial systems.

Built with an integrated dustproof felt cloth barrier, the internal carbon tracks remain securely shielded from environmental debris. This premium protection design significantly extends component lifespan while maintaining pristine signal clarity.

Offering global OEMs an outstanding balance of mechanical durability and precise electrical control, this 127mm metal case potentiometer provides a reliable high-volume wholesale manufacturing solution.

Key Features

• Dual Rail Precision Guidance:

  Engineered with a high-grade dual rail structure, this 100mm fader delivers ultra-stable slide performance with minimal lateral play. The parallel rails distribute operational force evenly, eliminating lever wobble and ensuring a premium tactile feel required by professional sound engineers and calibration technicians.

• Advanced Dustproof Protection:

  Featuring an integrated heavy-duty dustproof felt cloth strip, the slider mechanism is protected against dust, lint, and liquid splashes. This protective barrier preserves internal carbon track integrity, eliminates unwanted sliding noise, and guarantees high reliability in harsh, high-traffic commercial environments.

• Synchronized Dual Unit Configuration:

  Designed as a G-type dual-unit/stereo gang potentiometer, it controls two independent circuit channels simultaneously. This layout ensures tight tracking error matching within ±3dB, making it an ideal choice for high-fidelity stereo audio attenuation, balanced audio systems, and multi-channel industrial automation controls.

• Rugged Metal Case Shell:

  Housed in a rigid metal casing measuring 127mm × 16mm × 10.2mm, this component offers exceptional mechanical protection and superior electromagnetic interference shielding. The reinforced structural envelope withstands up to 5kgf.cm of shaft stop strength, protecting critical internal components from stress.

• Optimized B2B Supply Economics:

  With a competitive unit price of $2.20 USD and a direct-factory MOQ of 2,000 pieces, this model offers premium value. We provide comprehensive scalability with scalable volume discounts and highly flexible OEM/ODM modifications for custom resistance tapers, lever lengths, and mounting pin configurations.

Technical Specifications

Customization Options

• Lever Profiles: Available in F Type, P Type, M Type, and T Type options with variable operational lengths ($L$) ranging from 8mm to 20mm to accommodate diverse knob interface standards.

• Resistance Curve Customization: Supports traditional Linear Taper B, Audio/Logarithmic Taper A, or Reverse Logarithmic Taper C curves matching specialized system voltage distributions.

• Terminal Adaptations: Terminal pin styles can be modified to align with specific dual-layer PCB layouts, manual terminal wire harnessing, or custom wave-soldering production setups.

Applications

The SD1009N-H dual-rail slide potentiometer is highly versatile across professional and industrial systems. Key commercial application scenarios include: premium studio mixing consoles, broadcast radio master faders, theater stage lighting dimmers, high-end graphic equalizers, industrial machinery control panels, medical imaging user interfaces, DJ audio performance equipment, modular audio synthesizer modules, automated process control dashboards, video editing hardware surfaces, electronic instrumentation calibration, and smart building zone controllers. Its twin-track dual-unit architecture combined with protective dust shielding provides exceptional stereo precision and enduring reliability, making it the preferred master fader for high-traffic or demanding operating environments globally.

FAQ

• What is the MOQ and wholesale pricing for the SD1009N-H fader?

  The minimum order quantity is 2,000 pieces at $2.20 USD per unit, with flexible discounts for large-scale production.

• How does the dual-rail design benefit this 100mm slide potentiometer?

  The dual-rail structure provides superior mechanical stability, reducing lever wobble and ensuring smooth, balanced sliding movement during operation.

• What level of tracking accuracy does the dual-unit configuration provide?

  This stereo configuration maintains a tight tracking error within ±3dB, ensuring perfectly synchronized signal control across channels.

• Can we order custom lever lengths and profiles for our housing?

  Yes, we offer F, P, M, and T-type metal levers with custom heights ranging from 8mm up to 20mm.

• What protection does the integrated dustproof felt strip offer?

  The high-density felt cloth blocks environmental dust and contaminants, keeping sliding noise below 100mV and extending overall lifecycle.

• What are the primary electrical limitations regarding maximum voltage?

  For standard linear taper B configurations, the potentiometer safely supports a maximum operating voltage of up to 500V DC.
