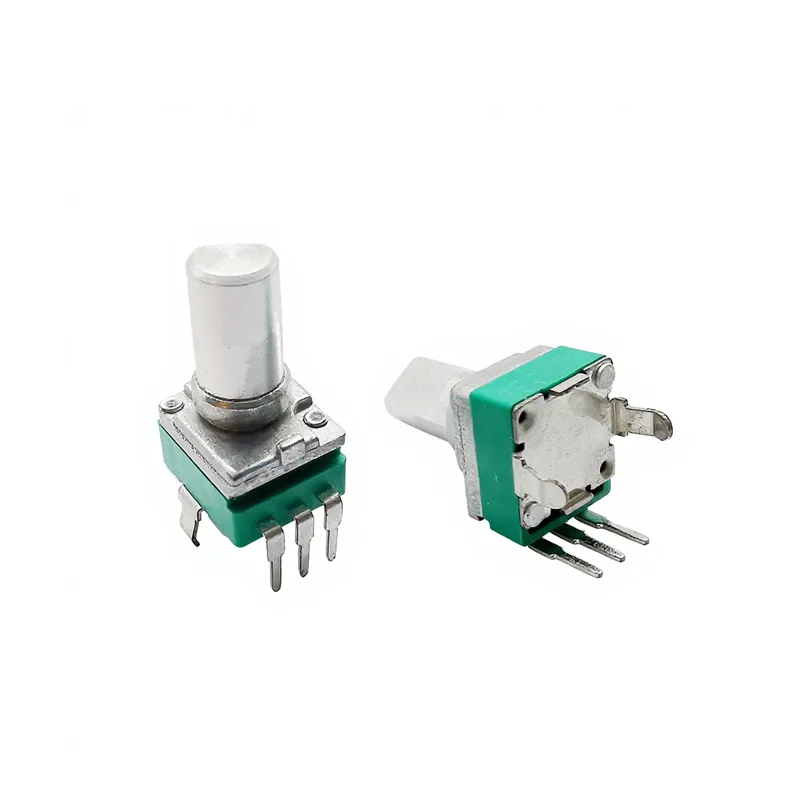

RD092N-HA1-41C-F 9mm Sealed Rotary Potentiometer
The RD092N-HA1-41C-F rotary potentiometer is a compact and reliable 9mm rotary potentiometer designed for precise resistance adjustment and stable signal control in electronic devices. With a green insulated body, metal shaft, and PCB mount terminals, this model is suitable for applications that require smooth manual operation, compact installation, and dependable electrical performance.
As a professional sealed rotary potentiometer, the RD092N-HA1-41C-F belongs to the 9mm insert-molding insulated shaft rotary potentiometer series. It is widely used in audio equipment, consumer electronics, home appliances, smart control panels, industrial instruments, medical devices, automotive electronics, and other electronic control systems.
This green rotary potentiometer provides flexible options for shaft type, shaft length, resistance value, terminal layout, and click position, making it suitable for OEM and ODM electronic product manufacturers.
Product Overview
The RD092N-HA1-41C-F 9mm sealed rotary potentiometer is designed for PCB-mounted control applications. Its compact 9mm structure helps save internal space, while the metal shaft provides a stable operating feel for users.
The product can be used for volume control, tone adjustment, brightness control, speed regulation, signal adjustment, and other resistance control functions. For manufacturers looking for a reliable rotary potentiometer for electronic control, this model offers a practical balance of compact size, stable performance, and customization flexibility.
Key Features
Compact 9mm Sealed Design
This 9mm sealed rotary potentiometer is suitable for electronic devices with limited internal space. The compact body design helps engineers optimize PCB layout while maintaining reliable adjustment performance.
Green Insulated Body
The product uses a green insulated body structure, which helps improve product identification and supports stable use in electronic control circuits. The insulated structure makes it suitable for a wide range of PCB assembly applications.
Metal Shaft for Durable Operation
This rotary potentiometer with metal shaft provides strong mechanical support and a solid adjustment feel. It is suitable for products that require repeated manual adjustment, such as audio equipment, control panels, instruments, and small electronic devices.
PCB Mount Terminal Design
The PCB mount rotary potentiometer is designed with through-hole terminals for stable soldering and secure board connection. It is suitable for mass production, OEM assembly, and electronic control module manufacturing.
Multiple Shaft Type Options
According to the provided specification, the 9mm series supports different shaft types, including F Type, Y Type, K Type, T Type, P Type, and V Type. Shaft length and shaft structure can be selected according to product design requirements.
Optional Click Function
The series can support center click or 21-click position options, depending on the application. This makes the product suitable for devices that require tactile feedback or precise step adjustment.
Technical Specifications
| Item | Specification |
|---|---|
| Product Model | RD092N-HA1-41C-F |
| Product Type | 9mm Insert-Molding Insulated Shaft Rotary Potentiometer |
| Body Color | Green |
| Shaft Type | Metal Shaft |
| Mounting Type | PCB Mount / Through-Hole Mount |
| Available Shaft Types | F Type, Y Type, K Type, T Type, P Type, V Type |
| Total Rotational Angle | 280° ± 10° / 300° ± 10° |
| Rotational Torque | 10–100 gf.cm |
| Click Position | Center Click or 21 Click |
| Click Slip Out Force | 30–150 gf.cm |
| Shaft Stop Strength | ≤3 kgf.cm |
| Push & Pull Strength | ≥3 kgf.cm |
| Total Resistance Range | 1KΩ < R < 1MΩ ±20%; 1KΩ ≥ R ≥ 1MΩ ±30% |
| Resistance Taper | Customizable / Refer to project requirements |
| Power Rating | ≤0.05W |
| Max. Operating Voltage | 50V AC / 20V DC |
| Residual Resistance | R1~2 less than 10Ω; R2~3 less than 20Ω |
| Rotational Noise | ≤100mV |
| Tracking Error | ≤±3dB at -40～0dB |
| Insulation Resistance | 100MΩ min at 250V DC |
| Withstanding Voltage | 1 minute at 250V AC |
| Rotational Life | ≥10,000 cycles |
Applications
The RD092N-HA1-41C-F rotary potentiometer is suitable for many electronic control applications, including:
- Audio volume control
- Tone and signal adjustment
- Brightness control systems
- Speed adjustment devices
- Smart home control panels
- Consumer electronic products
- Home appliance control boards
- Industrial control panels
- Medical equipment modules
- Automotive electronic controls
- Testing instruments and meters
- OEM and ODM electronic devices
For B2B buyers, this 9mm potentiometer for audio control and electronic control can be selected according to the required resistance value, shaft design, mounting method, and circuit layout.
Why Choose RD092N-HA1-41C-F Rotary Potentiometer?
The RD092N-HA1-41C-F 9mm rotary potentiometer is suitable for manufacturers that need a compact, stable, and customizable control component. Compared with general potentiometers, this model offers a sealed-style body, metal shaft, PCB mount terminals, and optional click positioning.
As a custom 9mm potentiometer manufacturer, we can support OEM and ODM customization based on customer drawings, samples, or application requirements. Available customization options include resistance value, shaft length, shaft type, terminal layout, click function, body color, and packaging method.
This helps customers improve circuit compatibility, shorten product development time, and achieve stable performance in mass production.
FAQ
Q1: What is the RD092N-HA1-41C-F rotary potentiometer used for?
The RD092N-HA1-41C-F rotary potentiometer is used for resistance adjustment, audio volume control, signal adjustment, brightness control, and speed regulation in electronic devices.
Q2: Is this product a 9mm sealed rotary potentiometer?
Yes. This product belongs to the 9mm sealed rotary potentiometer series with an insert-molding insulated shaft structure and compact PCB mount design.
Q3: Can the shaft length and resistance value be customized?
Yes. Shaft length, shaft type, resistance value, resistance taper, terminal layout, and click position can be customized according to OEM or ODM project requirements.
Q4: Is this potentiometer suitable for PCB assembly?
Yes. This PCB mount rotary potentiometer uses through-hole terminals, which are suitable for stable soldering and electronic product assembly.
Q5: What is the rotational life of this potentiometer?
According to the provided specification, the rotational life is ≥10,000 cycles, making it suitable for regular manual adjustment applications.
