RD092N-HA-CC-F 9mm Sealed Rotary Potentiometer

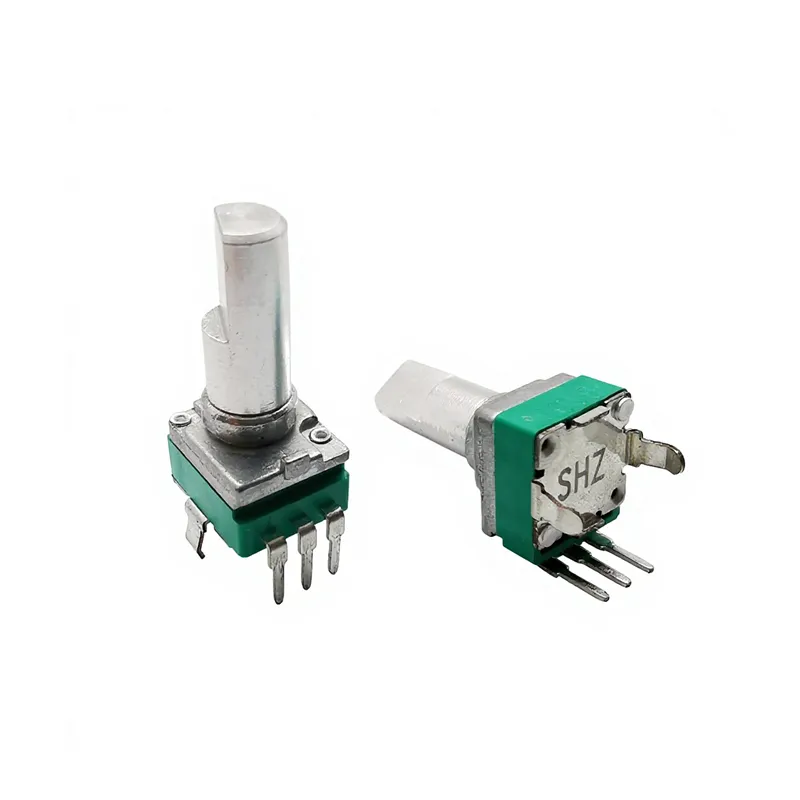

The RD092N-HA-CC-F 9mm rotary potentiometer is a compact and reliable electronic control component designed for precise resistance adjustment in PCB-mounted applications. As part of the 9mm insert-molding insulated shaft rotary potentiometer series, this model features a green insulated body, metal shaft, compact structure, and stable electrical performance.
This sealed rotary potentiometer is suitable for applications that require smooth manual adjustment, reliable signal control, and space-saving installation. It can be used for audio volume control, brightness adjustment, speed regulation, signal output control, and general electronic control functions.
With its compact 9mm size, through-hole terminals, and strong mechanical structure, the RD092N-HA-CC-F rotary potentiometer is widely used in consumer electronics, audio equipment, home appliances, smart control panels, industrial instruments, medical devices, and automotive electronic systems.
Product Overview
The RD092N-HA-CC-F rotary potentiometer is designed for manufacturers looking for a compact and durable PCB mount rotary potentiometer. Its metal shaft provides a solid operating feel, while the insulated body supports stable circuit performance in electronic control systems.
The product is suitable for OEM and ODM projects where resistance value, shaft length, shaft shape, terminal layout, and click function may need to be customized according to the final product design.
Key Features
Compact 9mm Sealed Structure
This 9mm sealed rotary potentiometer is suitable for compact electronic products and PCB layouts with limited installation space. The 9mm body design helps reduce product size while maintaining stable control performance.
Insulated Shaft Series Design
As an insulated shaft rotary potentiometer, the RD092N-HA-CC-F belongs to the insert-molding insulated shaft series. This structure is suitable for electronic devices that require stable adjustment and reliable insulation performance.
Metal Shaft for Stable Operation
The product uses a metal shaft design, offering a firm operating feel and good mechanical strength. It is suitable for control knobs, adjustment panels, audio devices, and industrial control interfaces.
PCB Mounting Terminals
This PCB mount rotary potentiometer is designed with through-hole terminals, making it suitable for stable soldering and circuit board assembly. The terminal layout supports reliable electrical connection during long-term use.
Optional Shaft and Click Designs

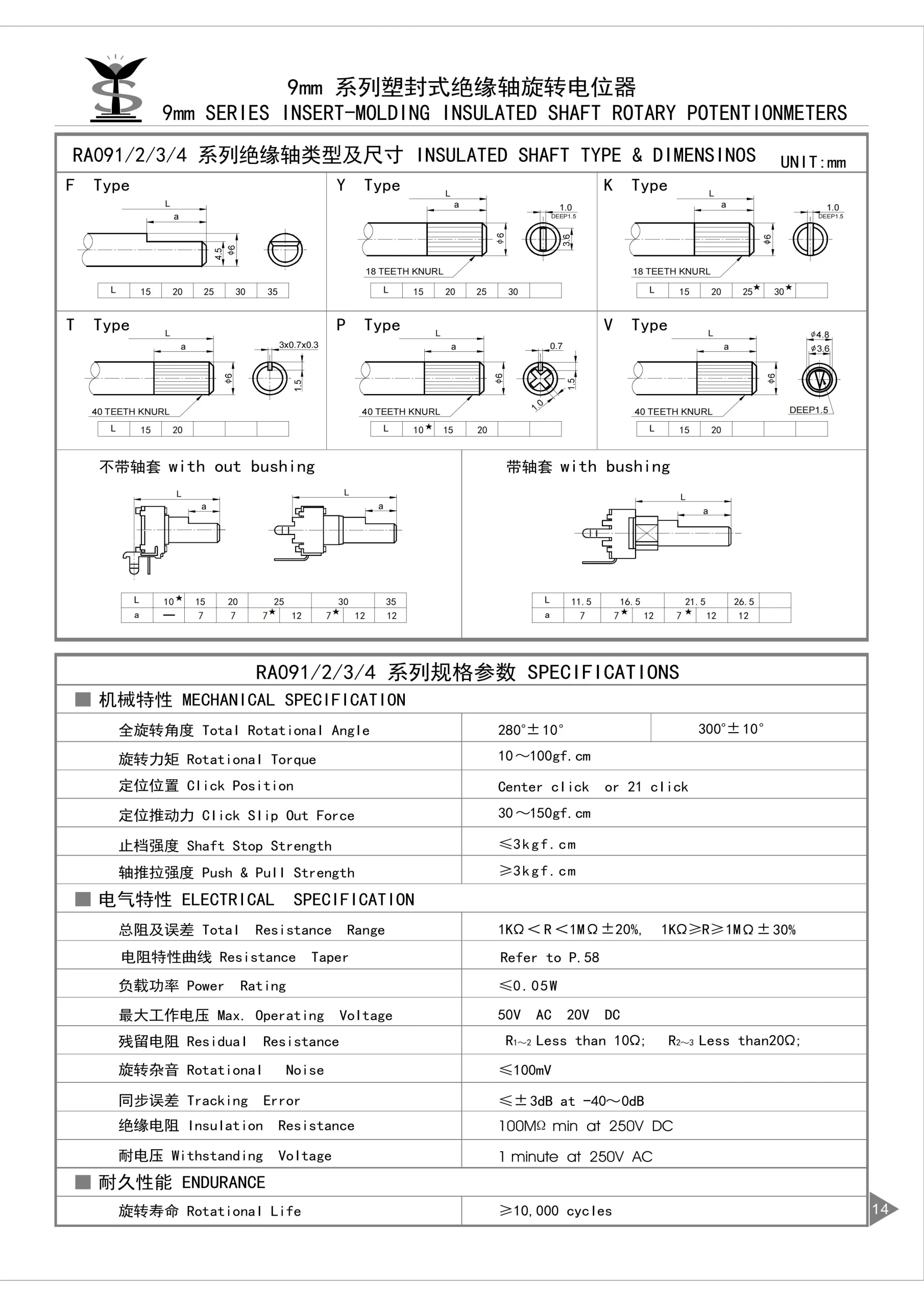

According to the provided specification, the RA091/2/3/4 series supports multiple shaft types such as F type, Y type, K type, T type, P type, and V type. It can also support center click or 21-click positioning options, depending on the project requirement.
Technical Specifications
| Item | Specification |
|---|---|
| Product Model | RD092N-HA-CC-F |
| Product Type | 9mm Insert-Molding Insulated Shaft Rotary Potentiometer |
| Body Color | Green |
| Shaft Type | Metal Shaft |
| Mounting Type | PCB Mount / Through-Hole Mount |
| Available Shaft Types | F Type, Y Type, K Type, T Type, P Type, V Type |
| Total Rotational Angle | 280° ± 10° / 300° ± 10° |
| Rotational Torque | 10–100 gf.cm |
| Click Position | Center Click or 21 Click |
| Click Slip Out Force | 30–150 gf.cm |
| Shaft Stop Strength | ≤3 kgf.cm |
| Push & Pull Strength | ≥3 kgf.cm |
| Total Resistance Range | 1KΩ < R < 1MΩ ±20%; 1KΩ ≥ R ≥ 1MΩ ±30% |
| Resistance Taper | Customizable / Refer to project requirements |
| Power Rating | ≤0.05W |
| Max. Operating Voltage | 50V AC / 20V DC |
| Residual Resistance | R1~2 less than 10Ω; R2~3 less than 20Ω |
| Rotational Noise | ≤100mV |
| Tracking Error | ≤±3dB at -40～0dB |
| Insulation Resistance | 100MΩ min at 250V DC |
| Withstanding Voltage | 1 minute at 250V AC |
| Rotational Life | ≥10,000 cycles |
Applications
The RD092N-HA-CC-F 9mm rotary potentiometer can be used in a wide range of electronic control applications, including:
- Audio volume control
- Tone and signal adjustment
- Brightness control systems
- Speed adjustment devices
- Smart home control panels
- Consumer electronic products
- Home appliance control boards
- Medical equipment control modules
- Industrial instruments and control panels
- Automotive electronic systems
- OEM and ODM electronic devices
For manufacturers looking for a reliable rotary potentiometer for electronic control, this model offers a compact structure, stable rotation, and flexible customization options.
Why Choose Our RD092N-HA-CC-F Rotary Potentiometer?
The RD092N-HA-CC-F rotary potentiometer is suitable for B2B buyers who need stable performance, flexible specifications, and reliable supply for electronic product manufacturing. Compared with standard potentiometers, this 9mm sealed rotary potentiometer provides a compact PCB mount structure, insulated body design, and durable metal shaft.
We can support customization based on customer drawings, samples, or application requirements. Available customization options include resistance value, shaft length, shaft type, terminal layout, click position, body color, and packaging method.
As a professional custom 9mm rotary potentiometer manufacturer, we help OEM and ODM customers select suitable potentiometer solutions for different electronic control applications.
FAQ
Q1: What is the RD092N-HA-CC-F rotary potentiometer used for?
The RD092N-HA-CC-F rotary potentiometer is used for resistance adjustment, volume control, signal adjustment, brightness control, and speed regulation in electronic devices.
Q2: Is this a 9mm sealed rotary potentiometer?
Yes. This model belongs to the 9mm sealed rotary potentiometer series with an insert-molding insulated shaft structure and compact PCB mount design.
Q3: Can the shaft length be customized?
Yes. Shaft length, shaft type, resistance value, terminal layout, and click position can be customized according to OEM or ODM project requirements.
Q4: What is the rotational life of this potentiometer?
According to the provided specification, the rotational life is ≥10,000 cycles, making it suitable for regular adjustment applications.
Q5: Is this potentiometer suitable for PCB assembly?
Yes. This PCB mount rotary potentiometer uses through-hole terminals, making it suitable for stable soldering and electronic product assembly.
