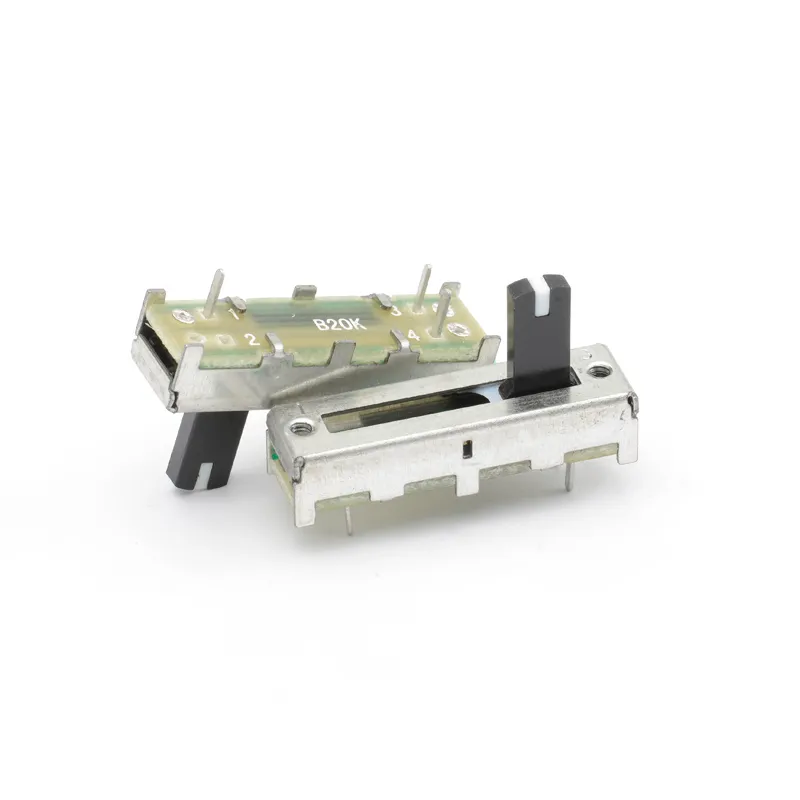

SC154N-H 15mm Travel Single Slider Potentiometer with Metal Case and Dust Cloth
The SC154N-H 15mm slide potentiometer is a compact and reliable electronic control component designed for precise linear adjustment in PCB-mounted applications. Featuring a 15mm travel length, single slider structure, metal case size of 30.3 × 8.3 × 7.0mm, and dust cloth protection, this model is suitable for electronic products that require smooth operation, stable signal output, and reliable long-term performance.
As a single slider potentiometer, SC154N-H is commonly used in audio equipment, mixers, equalizers, consumer electronics, industrial control panels, measuring instruments, and other electronic devices that require linear control of volume, brightness, voltage, speed, or signal levels.
Key Features of SC154N-H Slide Potentiometer
1. 15mm Travel for Smooth Linear Adjustment
The SC154N-H is designed as a 15mm travel slide potentiometer, providing smooth and accurate linear control. Compared with rotary adjustment, slide control gives users a more visual and intuitive operating experience, especially in audio control panels and interface devices.
2. Single Slider Structure for Precise Signal Control
This single slider potentiometer is suitable for single-channel signal adjustment. It can be used for volume control, tone adjustment, lighting control, speed regulation, voltage adjustment, and other electronic control applications.
3. Metal Case for Better Structural Protection
The product uses a compact metal case with a size of 30.3 × 8.3 × 7.0mm. This slide potentiometer with metal case structure helps improve mechanical protection and mounting stability, making it suitable for electronic products that require durable internal components.
4. Dust Cloth Design for Improved Reliability
The single slider potentiometer with dust cloth helps reduce dust entry during operation, improving product stability and service life. This design is especially useful for electronic devices used in daily operation environments.
5. PCB Mount Design for Compact Electronic Products
As a PCB mount slide potentiometer, SC154N-H is suitable for compact circuit board layouts. Its slim structure allows product engineers to design smaller and lighter electronic control modules.
Technical Specifications
| Item | Specification |
|---|---|
| Product Model | SC154N-H |
| Product Type | Single Slider Potentiometer |
| Series | SC Series Slide Potentiometer |
| Travel Length | 15mm |
| Case Type | Metal Case |
| Case Size | 30.3 × 8.3 × 7.0mm |
| Protection Design | With Dust Cloth |
| Operating Force | 10–150 gf.cm |
| Shaft Stop Strength | ≤ 3 kgf.cm |
| Lever Wobble | 2 × L / 10mm Max. |
| Click Force | 80–330 gf.cm |
| Total Resistance Range | 1KΩ ≤ R < 1MΩ ±20%; 1MΩ and above ±30% |
| Resistance Taper | Custom / Refer to Specification |
| Power Rating | Based on travel length and taper type |
| Max. Operating Voltage | Linear Taper: 100V AC / Other Taper: 50V AC |
| Residual Resistance | R1–2 Less than 10Ω; R2–3 Less than 20Ω |
| Sliding / Operating Noise | ≤ 100mV |
| Tracking Error | ≤ ±3dB at -40–0dB |
| Insulation Resistance | 100MΩ min. at 250V DC |
| Withstanding Voltage | 1 minute at 300V AC |
| Operating Life | ≥ 10,000 cycles |
Applications
The SC154N-H 15mm slider potentiometer for electronic control can be used in many products requiring smooth linear adjustment and stable signal output.
Common applications include:
- Audio mixers and sound control panels
- Equalizers and amplifier equipment
- Consumer electronic devices
- Home appliance control panels
- Industrial control equipment
- Measuring instruments
- Communication devices
- Lighting dimmer controls
- Speed control modules
- PCB electronic control systems
Because of its compact structure and metal case protection, SC154N-H is suitable for OEM and ODM product development where space-saving design and reliable linear control are required.
Why Choose SC154N-H Slide Potentiometer?
The SC154N-H offers a practical balance of compact size, smooth operation, and stable electrical performance. Its 15mm travel slide potentiometer design gives users intuitive linear control, while the metal case and dust cloth help improve durability and reliability.
For B2B buyers, electronic component distributors, and equipment manufacturers, this model is a dependable choice for compact electronic products. As a custom slide potentiometer manufacturer, we can support different resistance values, lever types, terminal structures, and packaging requirements according to your project needs.
Customization Options
SC154N-H can be customized according to product drawings, samples, or application requirements. Available customization options include:
- Resistance value customization
- Resistance taper selection
- Lever type customization
- Terminal structure adjustment
- Travel length selection
- Dust cloth design
- Metal case structure
- Click force customization
- Bulk packaging and OEM supply
If your project requires a single channel slide potentiometer with specific resistance, lever height, or PCB mounting structure, SC154N-H can be customized to match your electronic product design.
FAQ
Q1: What type of potentiometer is SC154N-H?
SC154N-H is a 15mm travel single slider potentiometer with a metal case and dust cloth protection, designed for linear adjustment in electronic control applications.
Q2: Is SC154N-H suitable for PCB mounting?
Yes. SC154N-H is a PCB mount slide potentiometer, suitable for compact electronic devices and control panels.
Q3: What is the advantage of the dust cloth design?
The dust cloth helps reduce dust entry during operation, improving stability and reliability in daily-use electronic products.
Q4: What applications can this slide potentiometer be used for?
It can be used in audio mixers, equalizers, amplifiers, home appliances, industrial control panels, measuring instruments, lighting control devices, and consumer electronics.
Q5: Can SC154N-H be customized?
Yes. Resistance value, taper type, lever type, terminal structure, travel length, click force, and packaging can be customized according to customer requirements.
