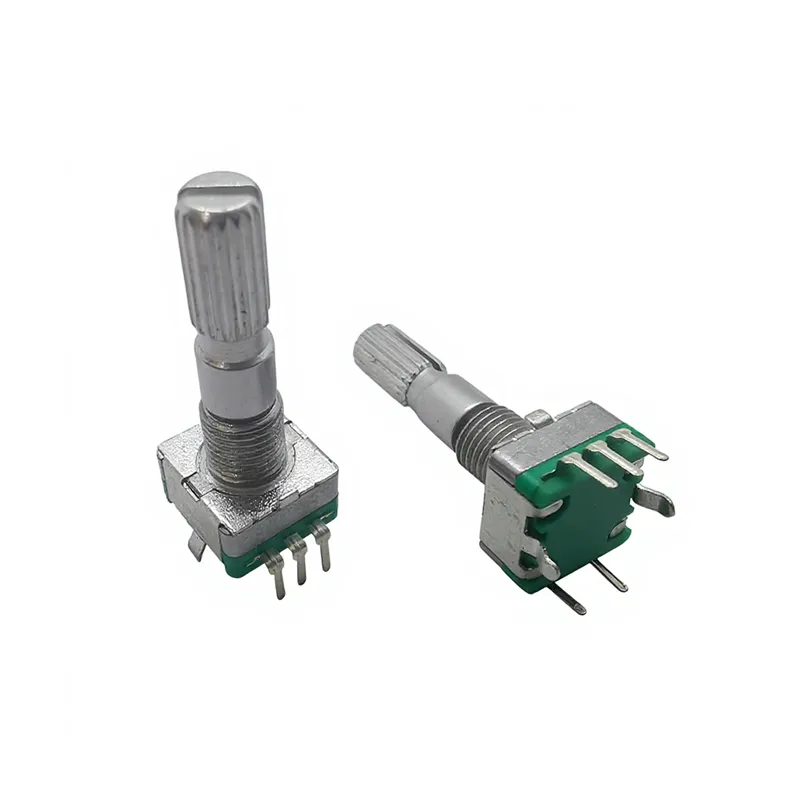

EC113S-H-K 11mm Horizontal Rotary Encoder with Metal Shaft and Push Switch

EC113S-H-K 11mm Horizontal Rotary Encoder with Metal Shaft and Push Switch

The EC113S-H-K 11mm rotary encoder is a compact and reliable digital control component designed for precise rotational input and stable pulse signal output. Featuring a second-generation 11mm structure, metal shaft, threaded bushing, horizontal PCB mounting design, and integrated press switch, this model is suitable for electronic devices that require rotary selection, menu navigation, volume control, function switching, and digital parameter adjustment.

As a horizontal rotary encoder with push switch, the EC113S-H-K is widely used in audio equipment, automotive electronics, smart home controllers, industrial control panels, medical devices, communication equipment, measuring instruments, and consumer electronic products. Its compact body and durable metal shaft structure make it a practical choice for OEM and ODM projects that require stable rotary input performance.

Key Features of EC113S-H-K Rotary Encoder

1. Compact 11mm Horizontal Mounting Design

The EC113S-H-K is designed as an 11mm horizontal rotary encoder, making it suitable for PCB layouts where side operation or panel-facing control is required. The horizontal structure helps engineers create compact user interfaces for electronic products with limited internal space.

2. Metal Shaft for Reliable Mechanical Operation

This rotary encoder with metal shaft provides stronger mechanical durability and better operating feel compared with standard plastic shaft structures. It is suitable for products that require frequent rotation, stable knob assembly, and long-term reliability.

3. Threaded Bushing for Secure Installation

The metal shaft rotary encoder with threaded bushing structure allows stable panel mounting and firm mechanical fixing. This design is especially suitable for control panels and electronic devices that require stronger installation support.

4. Integrated Push Switch Function

The built-in press switch allows users to rotate for selection and press to confirm. This rotary encoder with press switch is commonly used in menu navigation, audio volume control, function selection, smart control panels, and digital parameter setting.

5. Stable Incremental Pulse Output

As an incremental rotary encoder for digital control, EC113S-H-K outputs pulse signals during rotation, enabling direction detection and step-by-step adjustment in microcontroller-based electronic systems.

Technical Specifications

Applications

The EC113S-H-K 11mm PCB mount rotary encoder is suitable for electronic products that require compact rotary input and press-confirm control.

Common applications include:

• Audio equipment and volume control systems
• Car audio and automotive electronics
• Smart home control panels
• Industrial control devices
• Medical electronic equipment
• Consumer electronics
• Communication equipment
• Measuring instruments
• Menu navigation systems
• Digital parameter adjustment modules

Because of its horizontal rotary encoder with push switch structure, EC113S-H-K is especially suitable for control interfaces where users need both rotary adjustment and push-button confirmation.

Why Choose EC113S-H-K 11mm Rotary Encoder?

The EC113S-H-K combines compact size, stable pulse output, and reliable mechanical strength. Its metal shaft with threaded bushing provides better panel installation stability, while the integrated push switch improves user interface flexibility.

For B2B buyers, electronic component distributors, and equipment manufacturers, this model is a dependable solution for digital control applications. As a custom rotary encoder manufacturer, we can support different shaft lengths, shaft shapes, pulse numbers, detent structures, terminal layouts, and packaging options according to customer requirements.

Customization Options

EC113S-H-K can be customized according to customer drawings, samples, or product application requirements.

Available customization options include:

• Shaft length customization
• Metal shaft shape customization
• Threaded bushing design
• Pulse number selection
• Detent number selection
• Push switch force customization
• Terminal structure adjustment
• Horizontal PCB mounting design
• Packaging and bulk supply options
• OEM and ODM supply support

If your project requires a horizontal rotary encoder with press switch or a customized 11mm metal shaft rotary encoder, EC113S-H-K can be adapted to match your product design.

FAQ

Q1: What type of product is EC113S-H-K?

EC113S-H-K is an 11mm horizontal rotary encoder with push switch, designed for digital rotational input and press-confirm control.

Q2: Is EC113S-H-K a potentiometer?

No. EC113S-H-K is a rotary encoder, not a standard potentiometer. A potentiometer changes resistance value, while a rotary encoder outputs pulse signals for digital control.

Q3: What is the advantage of the threaded bushing?

The threaded bushing provides stronger panel fixing and improves installation stability, making it suitable for products that require reliable mechanical support.

Q4: What is the function of the press switch?

The press switch allows users to rotate for selection and press to confirm. It is commonly used for menu navigation, audio adjustment, function selection, and digital parameter setting.

Q5: Can EC113S-H-K be customized?

Yes. Shaft length, shaft shape, pulse number, detent number, terminal layout, switch force, bushing structure, and packaging can be customized according to customer requirements.
