EC112S-H-F 11mm Horizontal Rotary Encoder with D-Type Shaft and Push Switch

EC112S-H-F 11mm Horizontal Rotary Encoder with Metal D-Type Shaft and Push Switch

The EC112S-H-F 11mm rotary encoder is a compact and reliable digital control component designed for precise rotational input and stable pulse signal output. Featuring a second-generation 11mm structure, metal D-type shaft, bushing without thread, horizontal PCB mounting design, and integrated press switch, this model is suitable for electronic devices that require rotary selection, menu navigation, parameter adjustment, and push-to-confirm operation.

As a horizontal rotary encoder with push switch, EC112S-H-F is widely used in audio equipment, smart home controllers, industrial control panels, automotive electronics, medical devices, measuring instruments, communication equipment, and consumer electronics. Its compact 11mm size and metal shaft structure make it suitable for OEM and ODM products requiring reliable rotary input performance in limited PCB space.

Key Features of EC112S-H-F Rotary Encoder

1. Compact 11mm Horizontal Encoder Design

The EC112S-H-F is designed as an 11mm horizontal rotary encoder, making it suitable for PCB layouts where side adjustment or side-panel operation is required. The horizontal structure helps engineers create compact and practical control interfaces for electronic products.

2. Metal D-Type Shaft for Stable Knob Assembly

This metal D-type shaft rotary encoder provides stable knob fitting and reliable mechanical operation. The D-type shaft design helps prevent knob slipping and improves user operation feel, making it suitable for products that require frequent rotational control.

3. Bushing Without Thread for Flexible Assembly

The EC112S-H-F uses a bushing without thread structure, making it suitable for product designs that do not require threaded panel locking. This structure is practical for compact PCB-mounted control modules and internal assembly designs.

4. Integrated Push Switch Function

The built-in press switch allows users to rotate for selection and press to confirm. This rotary encoder with press switch is commonly used in menu navigation, audio control, function selection, lighting control, and digital parameter adjustment.

5. Stable Incremental Pulse Output

As an incremental rotary encoder for digital control, EC112S-H-F outputs pulse signals during rotation. It is suitable for microcontroller-based systems that need reliable direction detection and step-by-step adjustment.

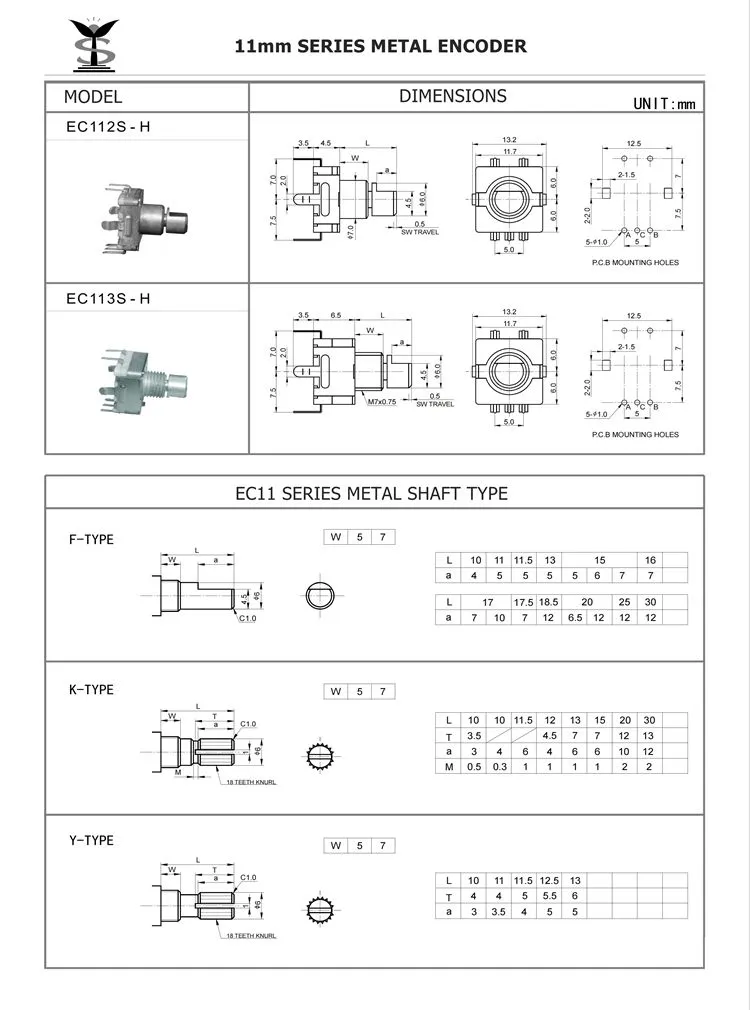

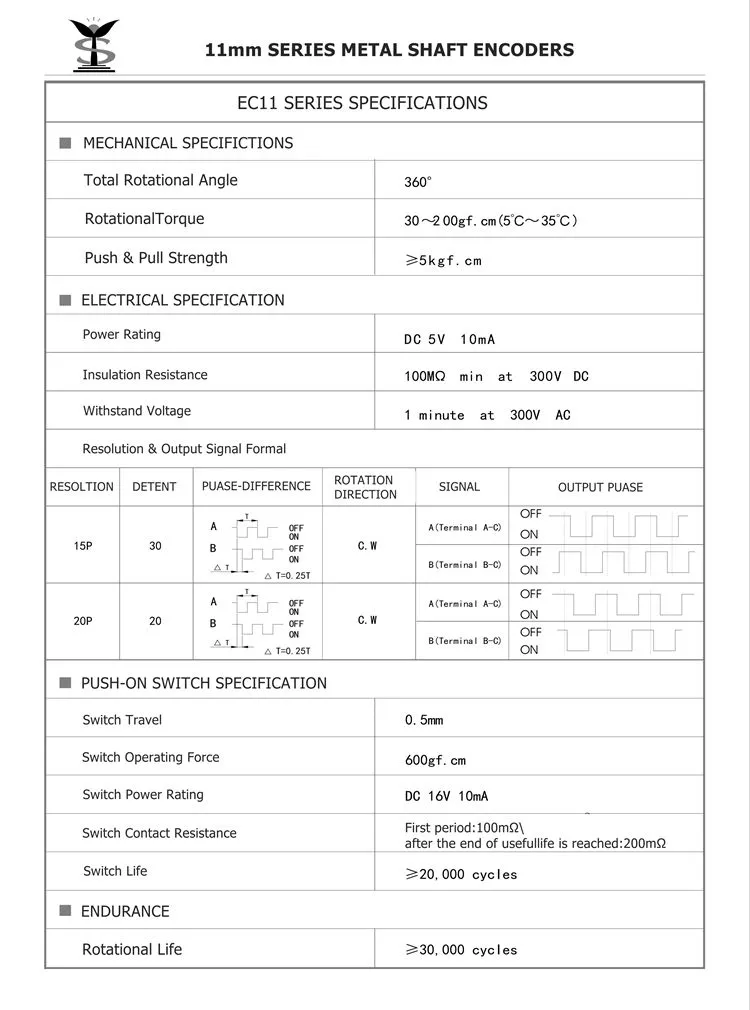

Technical Specifications

Applications

The EC112S-H-F 11mm PCB mount rotary encoder is suitable for electronic devices that require compact digital rotary control and press switch confirmation.

Common applications include:

• Audio equipment and volume control systems
• Car audio and automotive electronics
• Smart home control panels
• Industrial control devices
• Medical electronic equipment
• Consumer electronics
• Communication equipment
• Measuring instruments
• Menu navigation systems
• Digital parameter adjustment modules

Because of its horizontal rotary encoder with push switch structure, this model is especially suitable for electronic control panels where users need both rotation adjustment and press-confirm operation.

Why Choose EC112S-H-F 11mm Rotary Encoder?

The EC112S-H-F combines compact size, stable pulse output, and reliable mechanical operation. Its metal D-type shaft improves knob assembly stability, while the integrated push switch provides a more flexible user interface for modern electronic devices.

For B2B buyers, electronic component distributors, and equipment manufacturers, this model is a practical choice for compact digital control applications. As a custom rotary encoder manufacturer, we can support different shaft lengths, shaft shapes, pulse numbers, detent structures, terminal layouts, and packaging options according to project requirements.

Customization Options

EC112S-H-F can be customized according to customer drawings, samples, or product application requirements.

Available customization options include:

• Shaft length customization
• Metal D-type shaft customization
• Bushing structure adjustment
• Pulse number selection
• Detent number selection
• Push switch force customization
• Terminal structure adjustment
• Horizontal PCB mounting design
• Packaging and bulk supply options
• OEM and ODM supply support

If your project requires a horizontal rotary encoder with press switch or a customized 11mm metal shaft rotary encoder, EC112S-H-F can be adapted to match your electronic product design.

FAQ

Q1: What type of product is EC112S-H-F?

EC112S-H-F is an 11mm horizontal rotary encoder with push switch, designed for digital rotational input and press-confirm control.

Q2: Is EC112S-H-F a potentiometer?

No. EC112S-H-F is a rotary encoder, not a standard potentiometer. A potentiometer changes resistance value, while a rotary encoder outputs pulse signals for digital control.

Q3: What is the advantage of the metal D-type shaft?

The metal D-type shaft provides better knob fitting stability and helps prevent slipping during operation, making it suitable for control interfaces that require frequent rotation.

Q4: What is the function of the press switch?

The press switch allows users to rotate for selection and press to confirm. It is commonly used for menu control, audio adjustment, function selection, and digital parameter setting.

Q5: Can EC112S-H-F be customized?

Yes. Shaft length, shaft shape, pulse number, detent number, terminal layout, switch force, and packaging can be customized according to customer requirements.
