RD096G4-V1 9mm Sealed Rotary Potentiometer

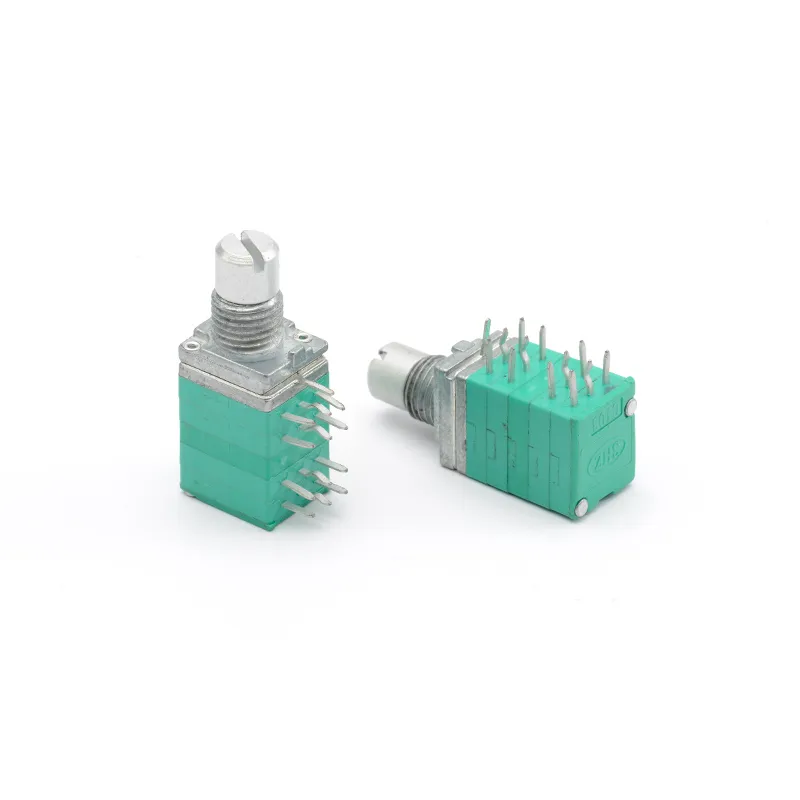

The RD096G4-V1 rotary potentiometer is a compact 9mm rotary potentiometer designed for precise resistance adjustment and stable electronic control. Featuring a green insulated body, metal shaft, multi-terminal structure, and PCB mount design, this model is suitable for electronic devices that require reliable adjustment performance within limited installation space.
As a sealed rotary potentiometer, the RD096G4-V1 belongs to the 9mm insert-molding insulated shaft rotary potentiometer series. It is designed for applications such as audio volume control, tone adjustment, signal control, speed regulation, brightness control, and multi-channel electronic adjustment.
With its compact 9mm structure and multi-gang design, this multi gang rotary potentiometer is especially suitable for audio equipment, control panels, industrial instruments, consumer electronics, smart home devices, medical equipment, automotive electronics, and customized OEM/ODM electronic products.
Product Overview
The RD096G4-V1 9mm sealed rotary potentiometer is built for PCB-mounted control applications. Compared with single-gang potentiometers, the G4 structure provides more terminals and supports multi-channel circuit control. This makes it suitable for products that require synchronized or multi-function adjustment in one compact component.
The product uses an insulated shaft structure and through-hole terminals, helping manufacturers achieve stable soldering, reliable signal transmission, and efficient PCB assembly. For B2B buyers looking for a compact PCB mount rotary potentiometer, RD096G4-V1 offers a practical solution for mass production and customized electronic projects.
Key Features
Compact 9mm Sealed Structure
This 9mm sealed rotary potentiometer is designed for electronic products with limited internal space. Its compact body helps save PCB layout space while maintaining stable mechanical and electrical performance.
Multi-Gang Control Design
The RD096G4-V1 rotary potentiometer features a G4 multi-gang structure. It can support more complex circuit control requirements compared with standard single-gang models, making it suitable for audio devices, control systems, and electronic products that require multi-channel adjustment.
Green Insulated Body
The green insulated body provides clear product identification and stable structural support. As an insulated shaft rotary potentiometer, it is suitable for a wide range of electronic control applications where compact size and insulation performance are important.
PCB Mount Through-Hole Terminals
This PCB mount rotary potentiometer uses through-hole terminals for stable soldering and strong board connection. The terminal structure is suitable for mass production, electronic assembly, and OEM control module manufacturing.
Smooth Rotation and Reliable Adjustment
According to the provided specifications, the RA096/097 series supports a total rotational angle of 300° ± 10° and rotational torque of 20–100 gf.cm. This provides smooth manual operation for volume control, signal adjustment, and other precision control functions.
Customizable Shaft and Resistance Options
The RD096G4-V1 can be customized according to customer project requirements. Available options may include shaft length, shaft type, resistance value, resistance taper, terminal layout, and packaging method.
Technical Specifications
| Item | Specification |
|---|---|
| Product Model | RD096G4-V1 |
| Product Type | 9mm Insert-Molding Insulated Shaft Rotary Potentiometer |
| Series | RA096 / RA097 Series |
| Body Color | Green |
| Structure | Multi-Gang / G4 Type |
| Mounting Type | PCB Mount / Through-Hole Mount |
| Shaft Type | Metal Shaft / Insulated Shaft Series |
| Total Rotational Angle | 300° ± 10° |
| Rotational Torque | 20–100 gf.cm |
| Shaft Stop Strength | ≤3 kgf.cm |
| Push & Pull Strength | ≥5 kgf.cm |
| Shaft Wobble | Within 0.7 × L / 20 mm p-p, L = Shaft Length |
| Total Resistance Range | 1KΩ < R < 1MΩ ±20%; 1KΩ ≥ R ≥ 1MΩ ±30% |
| Resistance Taper | Customizable / Refer to project requirements |
| Power Rating | ≤0.05W |
| Max. Operating Voltage | 50V AC / 20V DC |
| Residual Resistance | R1~2 less than 10Ω; R2~3 less than 20Ω |
| Rotational Noise | ≤100mV |
| Tracking Error | ≤±3dB at -40～0dB |
| Insulation Resistance | 100MΩ min at 250V DC |
| Withstanding Voltage | 1 minute at 250V AC |
| Rotational Life | ≥10,000 cycles |
| Application | Audio control, signal adjustment, PCB circuit control, electronic control systems |
Applications
The RD096G4-V1 9mm rotary potentiometer is suitable for many electronic control applications, including:
- Audio volume control
- Tone and balance adjustment
- Multi-channel signal adjustment
- Brightness control systems
- Speed adjustment devices
- Smart home control panels
- Consumer electronic products
- Home appliance control boards
- Industrial control modules
- Medical equipment control panels
- Automotive electronic controls
- Testing instruments and meters
- OEM and ODM electronic devices
For manufacturers looking for a reliable 9mm potentiometer for audio control or electronic control, RD096G4-V1 provides a compact, stable, and customizable potentiometer solution.
Why Choose RD096G4-V1 Rotary Potentiometer?
The RD096G4-V1 rotary potentiometer is suitable for B2B customers who need a compact potentiometer with stable performance, flexible specifications, and multi-gang control capability. Compared with standard single-channel potentiometers, this 4 gang rotary potentiometer can support more complex circuit requirements while maintaining a compact 9mm body size.
As a professional custom 9mm rotary potentiometer manufacturer, we can support OEM and ODM customization based on customer drawings, samples, or application requirements. Custom options can include resistance value, resistance taper, shaft length, shaft shape, terminal layout, body color, and packaging.
This helps electronic manufacturers improve product compatibility, reduce development time, and achieve stable performance in mass production.
FAQ
Q1: What is the RD096G4-V1 rotary potentiometer used for?
The RD096G4-V1 rotary potentiometer is used for resistance adjustment, audio control, signal adjustment, brightness control, speed regulation, and multi-channel electronic control.
Q2: Is RD096G4-V1 a 9mm sealed rotary potentiometer?
Yes. RD096G4-V1 belongs to the 9mm sealed rotary potentiometer series with an insert-molding insulated shaft structure and PCB mount terminal design.
Q3: What does G4 mean in RD096G4-V1?
G4 generally refers to a multi-gang structure. Compared with single-gang models, this structure can provide more terminals and support more complex circuit control requirements.
Q4: Can the resistance value and shaft length be customized?
Yes. Resistance value, resistance taper, shaft length, shaft type, terminal layout, body color, and packaging can be customized according to OEM or ODM project requirements.
Q5: Is this potentiometer suitable for PCB assembly?
Yes. This PCB mount rotary potentiometer uses through-hole terminals, making it suitable for stable soldering and mass PCB assembly.
