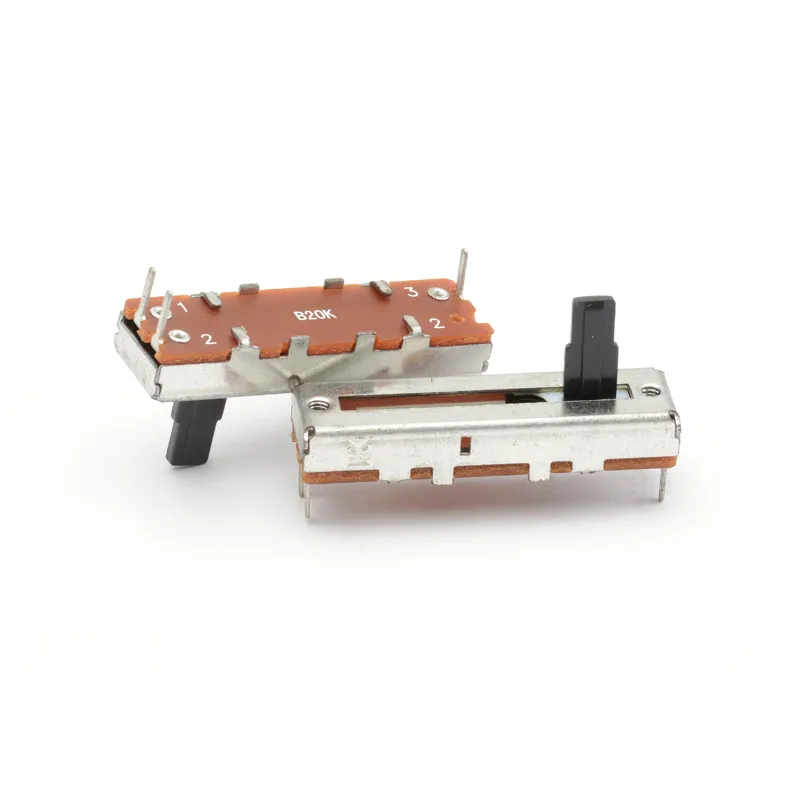

SC206N-H 20mm Travel Single Slider Potentiometer with Iron Case and Dust Cloth
The SC206N-H 20mm slide potentiometer is a compact linear control component designed for smooth and stable signal adjustment in electronic devices. Featuring a 20mm travel length, single slider structure, iron case size of 35.5 × 9.6 × 6.5mm, and dust cloth protection, this model is suitable for PCB-mounted applications that require reliable operation, accurate control, and long-term performance.
As a single slider potentiometer, the SC206N-H is widely used in audio equipment, mixers, equalizers, amplifiers, consumer electronics, home appliances, industrial control panels, measuring instruments, and other electronic control systems. Its compact structure and protected sliding design make it a practical choice for OEM and ODM electronic product development.
Key Features of SC206N-H Slide Potentiometer
1. 20mm Travel for Smooth Linear Adjustment
The SC206N-H is designed as a 20mm travel slide potentiometer, providing smooth and intuitive linear control. Compared with rotary control components, a slide potentiometer allows users to clearly see the control position, making it especially suitable for audio panels, equalizers, dimmers, and user-interface control modules.
2. Single Slider Structure for Precise Control
This single slider potentiometer is suitable for single-channel signal adjustment. It can be used to control volume, tone, brightness, voltage, speed, signal level, or other electronic parameters that require stable linear adjustment.
3. Iron Case for Better Mechanical Protection
The SC206N-H uses an iron case with a compact size of 35.5 × 9.6 × 6.5mm. This slide potentiometer with iron case design helps protect the internal structure and improves mounting stability, making it suitable for electronic products that require durable components.
4. Dust Cloth Protection for Improved Reliability
The single slider potentiometer with dust cloth helps reduce dust entry during operation. This design supports smoother sliding performance and improves long-term reliability, especially for electronic devices that are frequently adjusted by users.
5. PCB Mount Design for Compact Electronic Products
As a PCB mount slide potentiometer, SC206N-H is suitable for compact circuit board layouts. Its slim profile allows engineers to integrate reliable linear control into small electronic products without occupying excessive internal space.
Technical Specifications
| Item | Specification |
|---|---|
| Product Model | SC206N-H |
| Product Type | Single Slider Potentiometer |
| Series | SC Series Slide Potentiometer |
| Travel Length | 20mm |
| Case Type | Iron Case |
| Case Size | 35.5 × 9.6 × 6.5mm |
| Protection Design | With Dust Cloth |
| Operating Force | 10–150 gf.cm |
| Shaft Stop Strength | ≤ 3 kgf.cm |
| Lever Wobble | 2 × L / 10mm Max. |
| Click Force | 80–330 gf.cm |
| Total Resistance Range | 1KΩ ≤ R < 1MΩ ±20%; 1MΩ and above ±30% |
| Resistance Taper | Custom / Refer to Specification |
| Power Rating | Based on travel length and taper type |
| Max. Operating Voltage | Linear Taper: 100V AC / Other Taper: 50V AC |
| Residual Resistance | R1–2 Less than 10Ω; R2–3 Less than 20Ω |
| Sliding / Operating Noise | ≤ 100mV |
| Tracking Error | ≤ ±3dB at -40–0dB |
| Insulation Resistance | 100MΩ min. at 250V DC |
| Withstanding Voltage | 1 minute at 300V AC |
| Operating Life | ≥ 10,000 cycles |
Applications
The SC206N-H 20mm slider potentiometer for electronic control is suitable for products that require smooth linear adjustment and stable signal output.
Common applications include:
- Audio mixers and sound control panels
- Equalizers and amplifier equipment
- Consumer electronic devices
- Home appliance control panels
- Industrial control equipment
- Measuring instruments
- Communication devices
- Lighting dimmer controls
- Speed control modules
- PCB signal adjustment systems
Because of its 20mm travel, iron case structure, and dust cloth protection, SC206N-H is especially suitable for compact electronic products that require stable and reliable linear control.
Why Choose SC206N-H Slide Potentiometer?
The SC206N-H provides a good balance of compact structure, smooth operation, and reliable electrical performance. Its 20mm slide potentiometer design offers a practical adjustment range for control panels and electronic interfaces, while the iron case helps improve mechanical protection.
For B2B buyers, electronic component distributors, and equipment manufacturers, this model is a dependable option for single-channel control applications. As a custom slide potentiometer manufacturer, we can support different resistance values, taper types, lever styles, terminal structures, and packaging requirements according to customer projects.
Customization Options
SC206N-H can be customized according to customer drawings, samples, or product application requirements.
Available customization options include:
- Resistance value customization
- Resistance taper selection
- Lever type customization
- Terminal structure adjustment
- Travel length selection
- Iron case structure customization
- Dust cloth design
- Click force customization
- PCB mounting design
- Bulk packaging and OEM supply
If your project requires a 20mm travel slide potentiometer with a special resistance value, lever height, dust protection design, or PCB mounting structure, SC206N-H can be customized to match your electronic product design.
FAQ
Q1: What type of potentiometer is SC206N-H?
SC206N-H is a 20mm travel single slider potentiometer with an iron case and dust cloth protection, designed for linear adjustment in electronic control applications.
Q2: Is SC206N-H suitable for PCB mounting?
Yes. SC206N-H is a PCB mount slide potentiometer, suitable for compact electronic devices, control panels, and signal adjustment modules.
Q3: What is the advantage of the dust cloth design?
The dust cloth helps reduce dust entry during sliding operation, improving product stability and supporting long-term reliable performance.
Q4: What is the difference between SC206N-H and SC204N-H?
Both are 20mm travel single slider potentiometers, but the SC206N-H has an iron case size of 35.5 × 9.6 × 6.5mm, while SC204N-H uses a different case size. The final choice depends on the PCB layout, product structure, and installation space.
Q5: Can SC206N-H be customized?
Yes. Resistance value, taper type, lever type, terminal structure, case design, click force, and packaging can be customized according to customer requirements.
