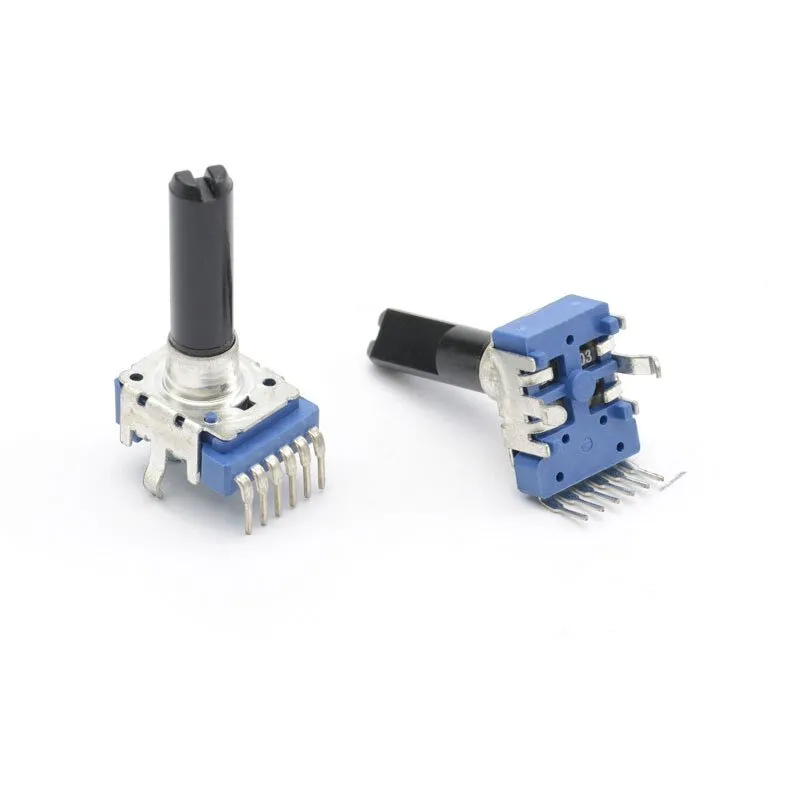

RA112G-H 11mm Horizontal Dual Unit Rotary Potentiometer with Metal Bushing

Product Introduction

The RA112G-H stands out as a dependable 11mm dual unit rotary potentiometer featuring a durable metal threaded bushing and an insulated plastic shaft. Engineers design this stereo component for compact circuit board integration, ensuring precise dual-channel resistance control and stable signal attenuation across modern electronic equipment.

Manufacturers construct these units with advanced carbon film elements inside a sealed miniature body. This design secures exceptionally smooth rotational torque, minimal electrical operating noise, and long-term signal stability. Furthermore, the horizontal right-angle pin layout combined with integrated metal support brackets attaches the component firmly to printed circuit boards.

Delivering professional manufacturing quality and attractive volume pricing, this versatile potentiometer offers global original equipment manufacturers a cost-effective solution for dual-channel audio equipment and compact industrial systems.

Key Features

• Threaded Metal Bushing Design: Engineered with a solid metal threaded collar, this potentiometer allows secure, tight panel installation. The metal bushing reinforces structural stability, preventing shaft wobble and protecting internal solder joints from mechanical stress during heavy use.

• Insulated Plastic Shaft Construction: Featuring a durable non-conductive plastic shaft, the component provides excellent electrical isolation, effectively preventing static interference and ground loops. The precise profile ensures a secure, slip-free push-on attachment for matching control knobs.

• Synchronized Dual Gang Architecture: Equipped with a dual-unit construction, the RA112G-H controls two independent audio or electrical channels simultaneously. With a tight tracking error, it guarantees accurate signal balance and seamless stereo channel matching across complex circuit boards.

• Horizontal Right-Angle PCB Mount: The horizontal pin configuration with integrated metal support brackets optimizes low-profile chassis layouts. This design reduces vertical clearance requirements, enabling efficient space management in multi-layer electronic hardware designs.

• High-Volume OEM Cost Efficiency: Available with a competitive minimum order quantity of 3,000 pieces at a direct-factory unit price of $0.26 USD, this model delivers outstanding scalability with lower production overhead and tier-based bulk discounts.

  Technical Specifications

  Item	Specification
  Product Model	RA112G-H
  Product Type	Horizontal Dual Unit Rotary Potentiometer with Bushing
  Series	RA11 Series
  Case Type	11mm Enclosed with Metal Bushing
  Case Size	11mm Miniature Profile, Horizontal Mount
  Protection Design	Fully Enclosed Housing with Bushing
  Operating Force	Rotational Torque: 20 ~ 200 gf.cm
  Click Force	Optional Center Click or 21 Click (30 ~ 150 gf.cm)
  Resistance Taper	Linear Taper B / Audio Taper A / Custom Curves
  Power Rating	Linear Taper B: 0.05 W
  Max. Operating Voltage	50V AC, 20V DC
  Withstanding Voltage	1 minute at 250V AC

  Customization Options

  • Shaft Length and Profiles: Tailored plastic shaft options including knurled splines, flat D-cut profiles, or custom lengths to fit specific control knobs.

  • Resistance Values & Curves: Custom total resistance values ranging from 1k$\Omega$ to 1M$\Omega$, with specialized linear or logarithmic taper curves.

  • Detent Configurations: Options for smooth continuous rotation or positive center detent clicks to provide tactile feedback at specific parameter checkpoints.

  Applications

  The RA112G-H 11mm rotary potentiometer suits diverse commercial and industrial applications. Primary use cases include: portable audio mixing consoles, stereo headphone amplifiers, multimedia active speakers, mini sound boards, lighting dimmer controllers, test and measurement instruments, home appliance control boards, intercom systems, automotive dashboard audio modules, toy controllers, communication radio gear, and power supply voltage regulators. Its sturdy metal bushing and dual-gang layout offer reliable stereo stability in high-vibration electronic environments.

  FAQ

  • What is the minimum order quantity and wholesale price for the RA112G-H?

    The minimum order quantity is 3,000 pieces at $0.26 USD per unit, with attractive price tiers for larger bulk orders.

  • What are the main advantages of the threaded metal bushing?

    The metal bushing provides strong panel-mount support, shifting physical stress away from the internal PCB solder connections during user adjustment.

  • Can the plastic shaft length and profile be customized?

    Yes, manufacturers offer fully customizable shaft lengths, diameters, and flat or spline patterns to match your specific control knobs.

  • What level of tracking accuracy does this dual-gang potentiometer provide?

    The synchronized dual tracks maintain a tight tracking error within $\pm 3\text{dB}$ for precise stereo balance across channels.

  • What is the expected mechanical lifespan under continuous rotation?

    The RA112G-H series provides durable performance, rated for an operational life of over 10,000 complete rotation cycles.

  • What power rating does this 11mm rotary potentiometer support?

    The unit supports a maximum power dissipation of 0.05W under standard operating conditions.
