Product Introduction

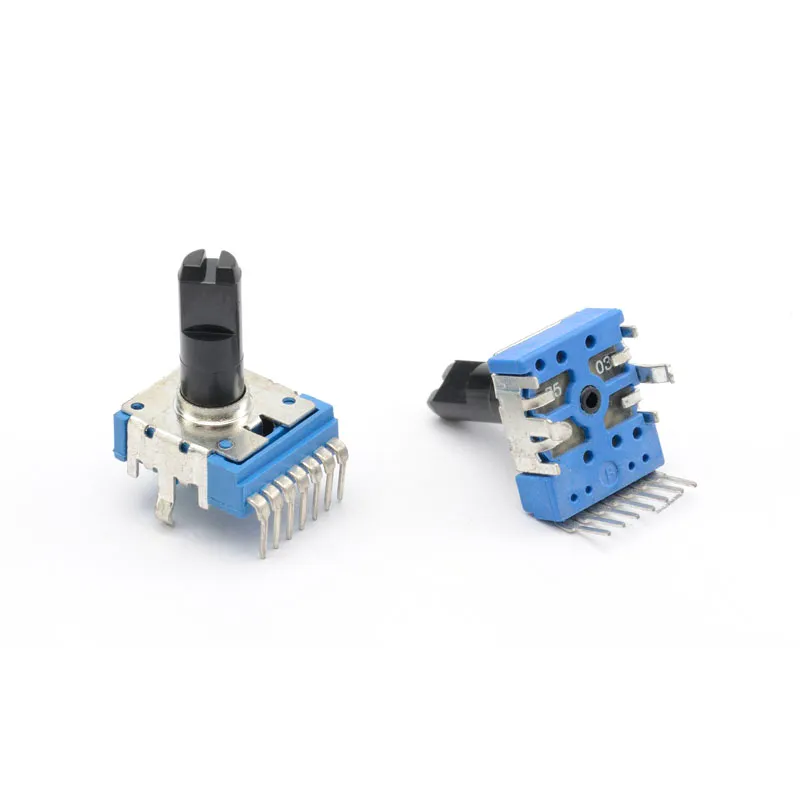

The RA141G-H is a 14mm enclosed dual-gang rotary potentiometer designed for audio controls, electronic equipment, and PCB-mounted applications. Its insulated plastic shaft and compact horizontal structure provide reliable operation where space is limited. The dual-gang design allows two circuits to be adjusted together with one shaft.
This 14mm rotary potentiometer uses a linear taper and fixed PCB mounting terminals. The enclosed construction helps protect the internal resistance element during normal use. It supports a wide resistance range from 1KΩ to below 1MΩ, making it suitable for different circuit designs.
The RA141G-H is available with different shaft configurations and dimensions according to the RA14 series specification. Standard orders start at 3,000 pieces, with a unit price of US$0.35. Better pricing is available for larger quantities.
Key Features
1. 14mm Compact Enclosed Design
The RA141G-H uses a 14mm series construction with an enclosed body. Its compact size is suitable for electronic products where PCB space is limited. The enclosed structure also provides a practical solution for applications that require stable mechanical protection around the internal control element.
2. Dual-Gang Linear Taper
This dual-gang design combines two variable resistance sections under one shaft. Both sections can be adjusted at the same time. The linear taper makes resistance change proportional to shaft rotation, which is useful for circuit control and applications requiring coordinated adjustment of two channels.
3. Insulated Plastic Shaft
The insulated plastic shaft is designed for applications that require an electrically insulated control interface. Several shaft lengths and shaft styles are available within the RA11/RA14 series specifications, helping engineers select a suitable configuration for different panel and mechanical requirements.
4. Horizontal PCB Mounting
The RA141G-H features a horizontal mounting structure with fixed PCB terminals. This configuration allows the component to be installed directly onto a circuit board. It is suitable for compact electronic assemblies and equipment where the potentiometer needs to sit horizontally relative to the PCB.
5. Wide Resistance Range
The RA11/RA14 series supports resistance values from 1KΩ to below 1MΩ with specified resistance tolerances. The supplied technical data lists ±20% for values below 1MΩ and ±30% for the stated 1MΩ range condition, providing multiple resistance options for different circuit requirements.
6. 10,000-Cycle Rotational Life
The specified rotational life is at least 10,000 cycles. Mechanical specifications also include a total rotational angle of 300° ±10° and a rotational torque range of 20–200 gf·cm. These specifications support repeated manual adjustment in electronic control applications.
Technical Specifications
| Parameter | RA141G-H Specification |
|---|---|
| Product Series | RA11 & RA14 Series |
| Model | RA141G-H |
| Product Type | Enclosed Dual-Gang Rotary Potentiometer |
| Size Series | 14mm |
| Shaft Type | Insulated Plastic Shaft |
| Taper | Linear |
| Mounting Type | Horizontal PCB Mount |
| Terminal Type | Fixed PCB Pins |
| Total Rotational Angle | 300° ±10° |
| Rotational Torque | 20–200 gf·cm |
| Click Position | Center Click |
| Click Slip-Out Force | 30–250 gf·cm |
| Shaft Stop Strength | ≤3 kgf·cm |
| Push & Pull Strength | ≥3 kgf·cm |
| Total Resistance Range | 1KΩ < R < 1MΩ ±20%; 1KΩ ≤ R ≥ 1MΩ ±30% |
| Resistance Taper | Refer to RA11/RA14 series specification |
| Power Rating | ≤0.05W |
| Maximum Operating Voltage | 50V AC / 20V DC |
| Residual Resistance | R1–2 <10Ω; R2–3 <20Ω |
| Rotational Noise | ≤100mV |
| Tracking Error | ≤±3dB at -40 to 0dB |
| Insulation Resistance | 100MΩ min. at 250V DC |
| Withstanding Voltage | 250V AC for 1 minute |
| Rotational Life | ≥10,000 cycles |
| MOQ | 3,000 pcs |
| Unit Price | US$0.35 |
| Bulk Pricing | Available for larger quantities |
Customization Options
The RA141G-H belongs to the RA11/RA14 insulated shaft series, which provides several mechanical configuration options. Depending on project requirements, customers can select suitable shaft lengths, shaft styles, and mounting configurations within the available series specifications.

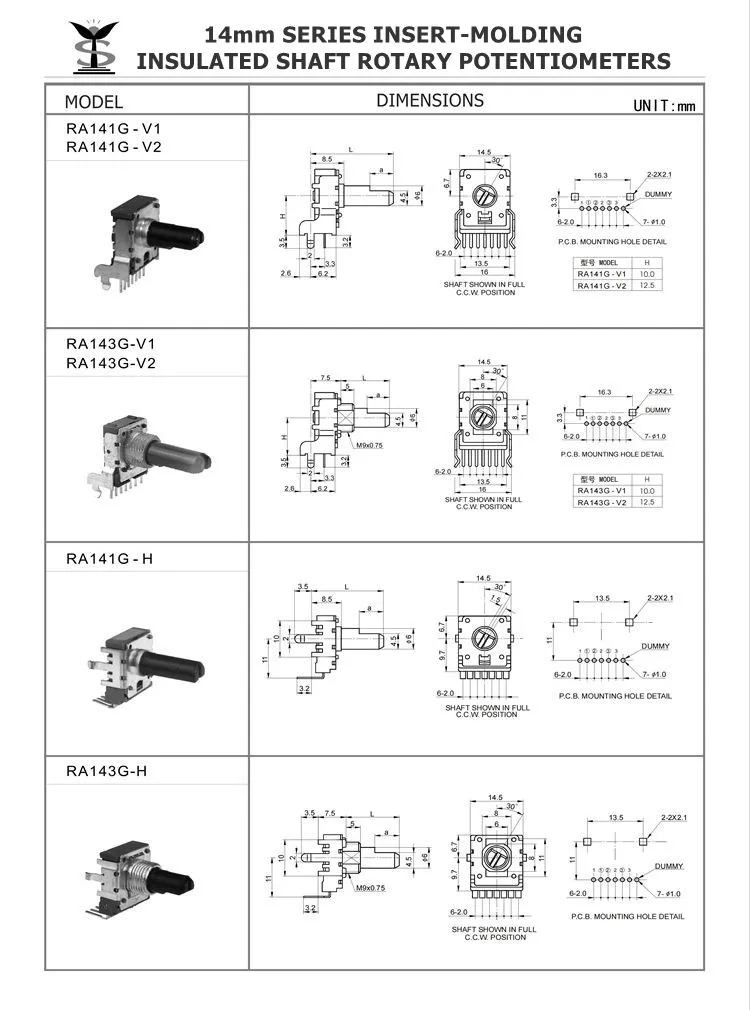

Available shaft types shown in the technical drawing include smooth and knurled configurations. Shaft lengths are also available in multiple dimensions. Customers should confirm the required shaft length, mounting position, resistance value, and mechanical interface before placing an order.
For OEM and ODM projects, the required electrical and mechanical specifications can be reviewed before mass production. Please provide the PCB layout, shaft requirements, resistance value, and application details for engineering confirmation.
Applications
The RA141G-H is designed for electronic equipment requiring two-channel rotary adjustment. Typical applications include audio amplifiers, stereo audio equipment, speaker systems, mixing equipment, control panels, electronic instruments, consumer electronics, PCB control assemblies, industrial electronic devices, and other compact equipment. Its dual-gang structure allows two resistance sections to operate from one shaft, making it suitable for applications where synchronized adjustment is required. The linear taper can also support control circuits that require a proportional resistance change during rotation.
FAQ
1. What is the RA141G-H?
The RA141G-H is a 14mm enclosed dual-gang linear rotary potentiometer with an insulated plastic shaft and horizontal PCB mounting terminals.
2. What resistance values are available?
The RA11/RA14 specification supports resistance values from 1KΩ to below 1MΩ, with tolerance conditions listed in the technical data.
3. Is the RA141G-H suitable for stereo audio?
Yes. Its dual-gang construction allows two resistance sections to be controlled together, making it suitable for two-channel electronic control applications.
4. What is the rotational life?
The specified rotational life is at least 10,000 cycles, according to the supplied RA11/RA14 series technical specification.
5. What is the minimum order quantity?
The standard MOQ for the RA141G-H is 3,000 pieces. Larger orders can receive more competitive pricing according to quantity.
6. Can the potentiometer be customized?
Mechanical configurations within the RA11/RA14 series can be selected. Customers should confirm shaft, resistance, mounting, and other requirements before production.
