Product Introduction

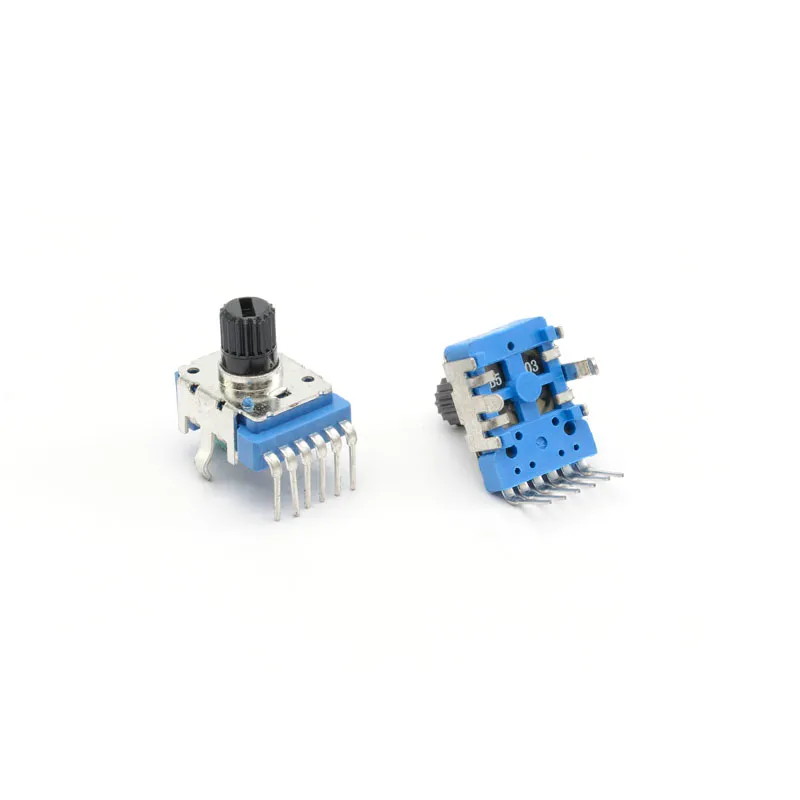

The RA111G-H 11mm sealed dual-unit rotary potentiometer is designed for compact PCB applications. It uses an insulated plastic shaft and a horizontal mounting structure. The closed design helps protect the internal resistance element during assembly and normal operation.
This dual-gang potentiometer provides two independent resistance channels in one compact component. It is suitable for volume, tone, balance, and other analog control functions.
The RA111G-H is available from 3,000 pieces, with a starting price of US$0.26 per piece. Larger orders can receive better pricing. Custom options are also available for OEM projects.
Key Features
11mm Compact Design
The 11mm body helps save PCB space in compact electronic products. The horizontal mounting layout is suitable for control panels and PCB assemblies where board height is limited. It provides a practical solution for products that need two variable resistance channels in a small package.
Dual-Unit Construction
The RA111G-H integrates two potentiometer sections into one component. This dual-gang structure helps reduce component count and PCB space. It can be used for linked control functions such as stereo volume, left-right audio adjustment, and other two-channel analog circuits.
Sealed Construction
The enclosed structure helps reduce exposure of the internal element to dust, flux residue, and other contaminants during production and use. This makes the component suitable for electronic products that require a more protected rotary control structure.
Insulated Plastic Shaft
The plastic insulated shaft provides electrical isolation between the shaft and the internal electrical structure. It is suitable for applications where shaft insulation is required. Shaft length, shaft shape, and related mechanical details can be discussed for OEM projects.
PCB Mounting with Fixed Pins
The product uses PCB mounting terminals and fixed mounting pins. This structure supports stable positioning during PCB assembly. It can help simplify automated or manual mounting and reduce movement of the component during soldering.
Stable Electrical Performance
The series supports resistance values from 1kΩ to 1MΩ, depending on the selected configuration. The power rating is up to 0.05W, with a maximum operating voltage of 50V AC / 20V DC. These values support many low-power analog control circuits.
Technical Specifications
| Item | Specification |
|---|---|
| Product Model | RA111G-H |
| Product Type | 11mm Sealed Dual-Unit Rotary Potentiometer |
| Series | RA11 / RA14 Series |
| Travel Length | Total rotational angle: 300° ± 10° |
| Case Type | Sealed / enclosed plastic body |
| Case Size | 11mm class |
| Protection Design | Sealed construction |
| Operating Force | Rotational torque: 20–200 gf·cm |
| Shaft Stop Strength | ≤3 kgf·cm |
| Lever Wobble | Not specified; available by configuration |
| Click Force | Center click available; click slip-out force: 30–250 gf·cm |
| Total Resistance Range | 1kΩ–1MΩ ±20%; 1MΩ and above ±30% |
| Resistance Taper | Available according to specification |
| Power Rating | ≤0.05W |
| Max. Operating Voltage | 50V AC / 20V DC |
| Residual Resistance | R1–2 <10Ω; R2–3 <20Ω |
| Sliding / Operating Noise | Rotational noise ≤100mV |
| Tracking Error | ≤±3dB at −40 to 0dB |
| Insulation Resistance | 100MΩ min. at 250V DC |
| Withstanding Voltage | 250V AC for 1 minute |
| Rotational Life | ≥10,000 cycles |
| Mounting | Horizontal PCB mount |
| Shaft Material | Insulated plastic shaft |
| MOQ | 3,000 pcs |
| Reference Price | US$0.26/pc |
| Volume Pricing | Available for larger quantities |
Note: Some mechanical dimensions and optional functions depend on the exact configuration. Please contact us for the latest drawing and approval sample before mass production.
Customization Options
The RA111G-H platform can be adapted for OEM and ODM projects. Available options may include:
- Resistance value: 1kΩ to 1MΩ and other requested values
- Resistance taper: Linear and application-specific taper options
- Shaft length: Different shaft lengths can be discussed
- Shaft shape: Knurled, flat, or other suitable designs
- Center detent: Available according to configuration
- Mounting structure: PCB mounting options for different board layouts
- Terminal layout: Adaptable to specific PCB requirements
- Rotational torque: Different operating feel can be evaluated
- Packaging: Bulk, tray, or project-specific packing
- OEM marking: Product marking and packaging can be customized
For new designs, buyers can provide a PCB drawing, existing sample, or competitor part number. Our engineering team can check mechanical and electrical compatibility before production.
